Numéro de produit: 8407

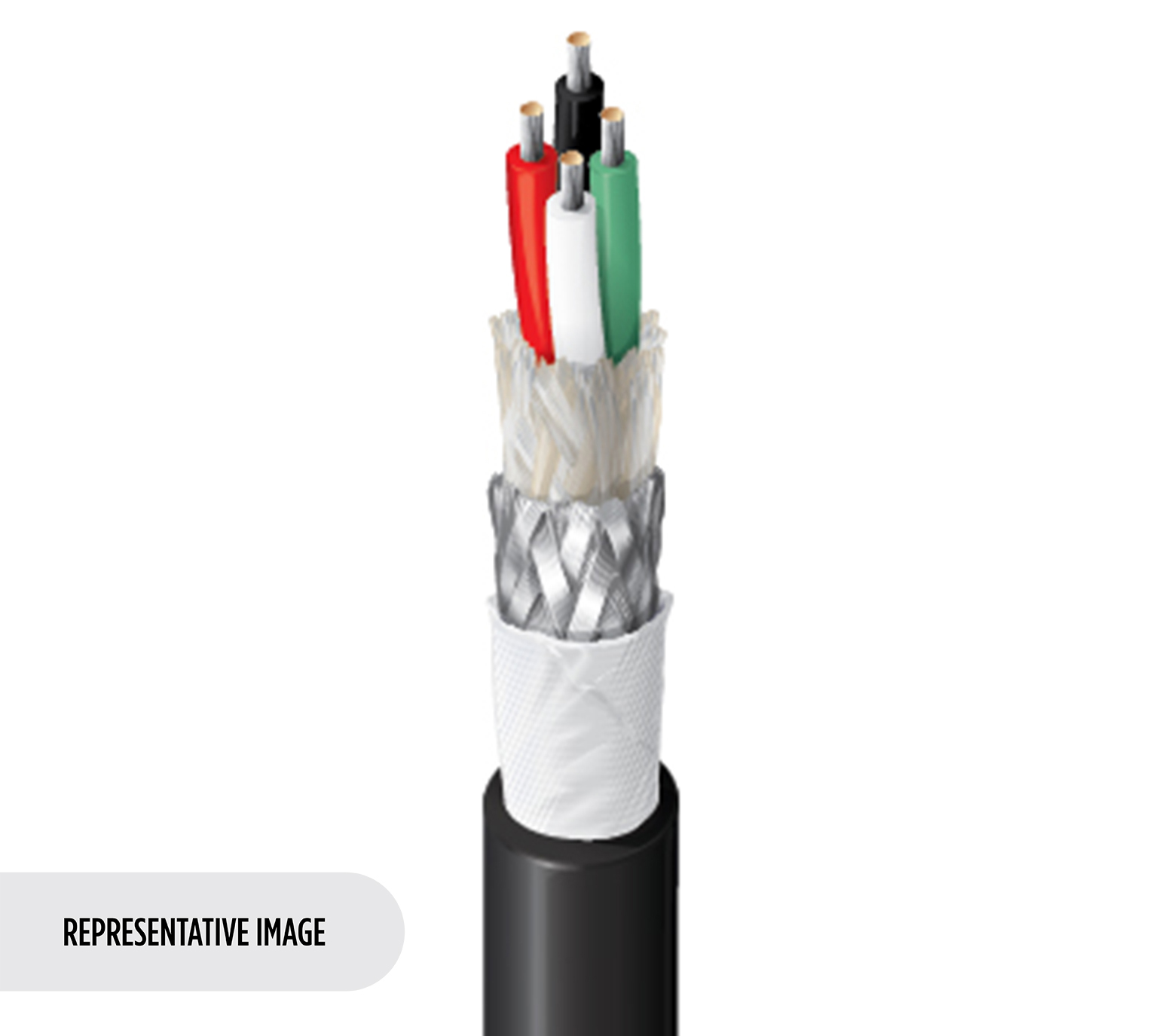

Microphone Cable, Star Quad, 4 C #16 Str TC, Rayon & 85% TC Braid, Cotton Serve, CPE Jkt

Microphone Cable, Star Quad, 4 Conductor 16 AWG (65 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, CPE Jacket

  • Disponibilité:
    Global
  • Statut:
    Actif
8407
  • 8407
1 de 1

Spécifications

Expand All

Suitable Applications

Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 4 16 AWG 65x34 TC - Tinned Copper (High Conductivity)

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM - Ethylene Propylene Diene Monomer 0.031 in (0.79 mm) 0.12 in (3.0 mm) Black, White, Red, Green

Outer Shield

Shield Type Material Coverage
Braid Rayon® 20%
Braid Tinned Copper (TC) 85%

Outer Jacket

Separator Material Nom. Thickness Nom. Diameter
Cotton Serve CPE - Chlorinated Polyethylene 0.043 in (1.1 mm) 0.416 in (10.6 mm)

Overall Cable Diameter (Nominal)

0.416 in (10.6 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Conductor(s) 4 Ohm/1000ft 30 pF/ft (98 pF/m) 44 Ohm 52% 5.6 Amps per conductor at 25°C

Nom Outer Shield DCR@Cond DCR1-cnv

2.63 Ohm/1000ft (8.63 Ohm/km)

Voltage

Voltage Rating
600 V

Temperature

Operating
-30°C to +60°C

Bend Radius

Stationary Min. Installation Min.
4.1 in (100 mm) 4.1 in (100 mm)

Max. Pull Tension

162 lbs (73.5 kg)

Bulk Cable Weight

111 lbs/1000ft

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

VW-1

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Quad connection scheme: The black and red wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the white and green wires (or remaining wires) are connected together to form the second conductor.

Update and Revision

Revision Number: 0.510 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.510 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.
