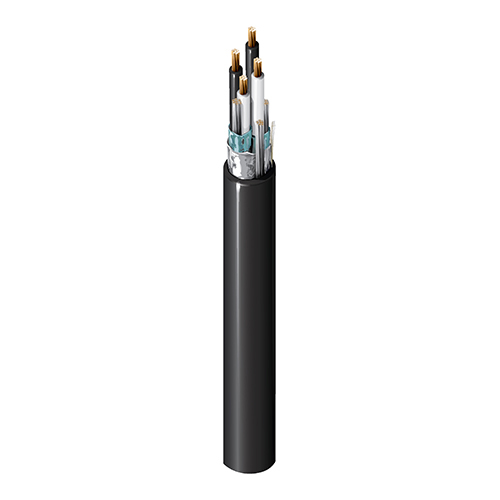

Numéro de produit: 32P2002

Inst PVC/PVC, 2 Pr #20 Str BC, PVC Ins E1, IS/OS, Blk PVC Jkt, 300V PLTC ITC CMG

Instrumentation UL, 2 paires 20 AWG (7 x 28) en cuivre nu, isolation PVC, code couleur E1, individuel & Bouclier global Beldfoil®, gaine extérieure en PVC noir, PLTC ITC CMG AWM 2464 SUN RES

  • Disponibilité:
    Amériques
  • Statut:
    Actif

Spécifications

Applications recommandées

Contrôle industriel, Chemins de câbles et conduits, Contrôle numérique, Instruments (4-20 mA, 0-10 V, ...), Contrôle numérique basse tension (24 V, …), RTD, Circuits de contrôle, Système de contrôle distribué (DCS), Automate programmable industriel (PLC), Solénoïdes, Vannes, Actionneurs, Positionneurs&

Conducteur

Element No. of Elements Size Stranding Material
Pair(s) 2 20 AWG 7x28 BC - Bare Copper

isolation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC - Polyvinyl Chloride 0.0175 in (0.445 mm) 0.071 in (1.8 mm) Black & White and Numbered

Blindage interne

Element Shield Type Material Coverage Drainwire Type
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

Blindage extérieur

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

Gaine extérieure

Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.042 in (1.1 mm) 0.337 in Yes

Diamètre total du câble (nominal)

0.337 po

Électricité

Nom. Conductor DCR Nom. Inner Shield DCR Max. Current
10.7 Ohm/1000ft 18.3 Ohm/1000ft (60.0 Ohm/km) 5 Amps per Conductor at 25ºC

Blindage extérieur nominal DCR@Cond DCR1-cnv

15,0 Ohm/1000 pieds (49,2 Ohm/km)

Voltage

UL Voltage Rating
300 V

Température

UL Temperature Operating
UL: 105°C, AWM 2464: 80°C -20°C to +105°C

Rayon de courbure

Stationary Min. Installation Min.
3.37 in (85.6 mm) 3.37 in

Tension de traction maximum

30 kg (67 livres)

Poids câble en vrac

50 lb/1000 pi

Environnement compatible

Intérieur, extérieur, résistance à la lumière

Inflammabilité/réaction au feu

Chargement UL1685 FT4, FT4, T-29-520, IEEE 1202 FT4

Conformité NEC / UL

Article 725, article 727, article 800

Conformité AWM

AWM 2464

Conformité CEC / C(UL)

CMG

Conformité aux directives européennes

Marquage CE UE, directive UE 2015/863/EU (amendement RoHS 2), directive UE 2011/65/EU (RoHS 2), directive UE 2012/19/UE (WEEE)

Conformité APAC

RoHS II Chine (GB/T 26572-2011)

Mise à jour et révision

Numéro de révision : 0.51 Date de révision : 07-09-2025

Mise à jour et révision

Numéro de révision : 0.51 Date de révision : 07-09-2025


Références des pièces

Article n° UPC
32P2002 0105000 612825360056
