Numéro de produit: REVConnect 10GX UTP Plugs

RVAFPUBK-REVConnect 10GX UTP Field Mount Plug, Black

REVConnect 10GX UTP Plugs are available in single packs and 24 bulk packs.

  • Disponibilité:
    Global
  • Statut:
    Actif

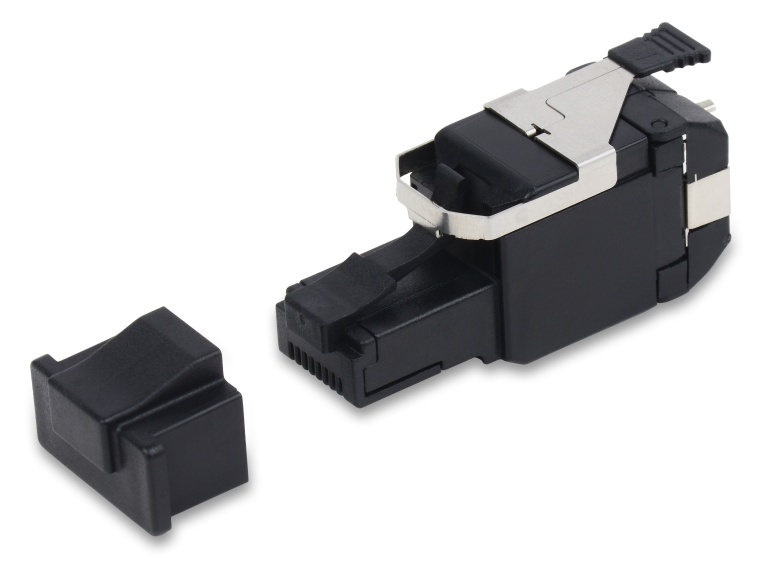

REVConnect 10GX UTP Plugs
  • REVConnect 10GX UTP Plugs
1 de 1

Spécifications

Expand All

Suitable Applications

10GX System, TIA Category 6A, ISO Class EA, 10GBASE-T

Wiring Scheme

T568A/B

Packaging

Individually packaged in a plastic bag.

Weight

0.016 lbs

Materials

Description Material Type
Front Connection Copper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel RJ45
Rear Connection Copper Clad Flexible PCB, Gold plated contacts over Palladium/Nickel REVConnect
Connector Body Polycarbonate - UL94V-0

Dielectric Strength

1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)

Current Rating

1.500 A

Insulation Resistance

500 M-Ohm Minimum

Max Contact Resistance

20 mOhm

Termination Resistance

2.5 mOhm

Installation Temperature Range

-10°C To +60°C

Storage Temperature Range

-40°C To +70°C

Operating Temperature Range

-10°C To +60°C

Connector System Compatibility

KeyConnect

Tool Compatibility

RVUTT01 Termination Tool

Plug /Jack Compatibility

RJ45

Termination Front Connection

Mated Connection

Termination Front Connection Durability

750 cycles

Termination Rear Connection

Mated Connection

Termination Rear Connection Durability

200 cycles

Cable/Connector Retention

15 lbs.

Connector/Hardware Retention

20 lbs

Plug/Connector Retention

11.250 lbs

UL Rating

UL94V-0

Data Category

Category 6A

TIA/EIA Compliance

Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2

IEEE Compliance

Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

UL Flammability

UL2043 Air Handling Spaces

Safety Listing

c(UL)us Listed

Related Parts

Refer to REVConnect WAP - CAMERA Compatibility Guide

Notes

Please see Installation Guide PX106434. Insulated wire diameter from the conductors: 0.9mm up to 1.3mm Outer diameter max is 9.3mm

Update and Revision

Revision Number: 0.185 Revision Date: 03-14-2025

Update and Revision

Revision Number: 0.185 Revision Date: 03-14-2025
