Numéro de produit: 8408

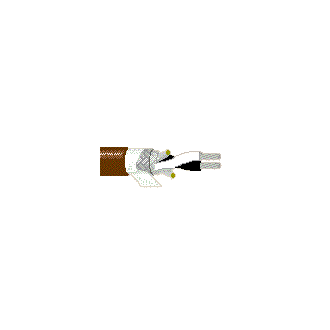

Microphone Cable, 2 Conductor 16 AWG, TC, CPE Jkt

Microphone Cable, 2 Conductor 16 AWG stranded (65x34) high-conductivity tinned copper conductors, EPDM rubber insulation, rayon braid, tinned copper braid shield (85% coverage), cotton wrap, CSPE - Chlorosulphonated Polyethylene heavy-duty jacket.

  • Disponibilité:
    Global
  • Statut:
    Actif
8408
  • 8408
1 de 1

Spécifications

Expand All

Suitable Applications

Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 2 16 65x34 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM - Ethylene Propylene Diene Monomer 0.037 in (0.94 mm) 0.133 in (3.38 mm) Black, White

Outer Shield

Shield Type Material Coverage
Braid Rayon® 85%
Braid Tinned Copper (TC) 85%

Outer Jacket

Separator Material Nom. Thickness Nom. Diameter
Cotton Serve CSPE - Chlorosulphonated Polyethylene 0.040 in (1.0 mm) 0.38 in (9.7 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 4 Ohm/1000ft 30 pF/ft (98 pF/m) 55 pF/ft (180 pF/m) 59 Ohm 5.6 Amps per Conductor at 25ºC (10°C Temperature Rise)

Nom Outer Shield DCR

2.4 Ohm/1000ft (7.9 Ohm/km)

Voltage

Voltage Rating
600 V

Temperature

Operating
-30°C To +60°C

Max. Pull Tension

150 lbs (68 kg)

Bulk Cable Weight

93 lbs/1000ft

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

VW-1

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.467 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.467 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

Références des pièces

Item # Color Putup Type Length UPC Footnote
8408 001500 Brown Reel 500 ft 612825355274 C
