Product Number: BE43780

Lead Wire, #8 Str TC, PVC Ins, AWM 1034

UL AWM ST 10434 VW-1 8AWG / 168x30 T

  • Availability:
    EMEA
  • Status:
    Active
BE43780
  • BE43780
1 of 1

Spécifications

Expand All

Suitable Applications

Rated temperature UL max 80 C and CSA max 105 C; Rated voltage max 600 V ac, 750 V dc and 2500 Volts peak for electronic use only; Interal Wiring of Applicances; or Internal Wiring of Appliances where exposed to oil at a temperature not exceeding 60 C

Conductor

Size Stranding Material
8 168x30 TC - Tinned Copper

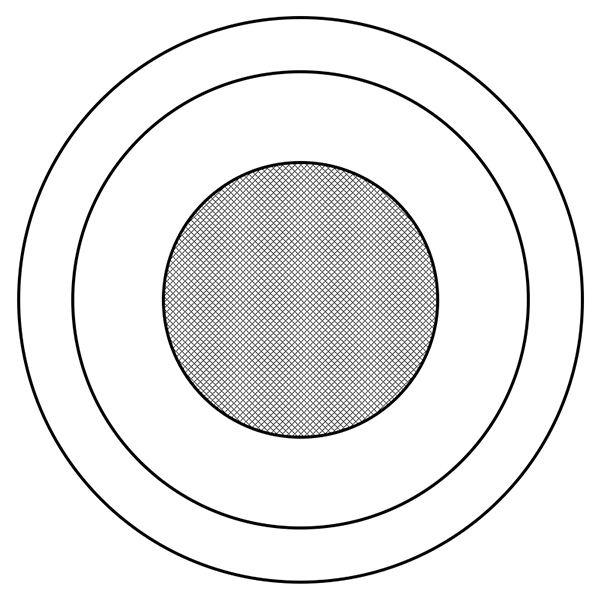

Insulation

Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC - Polyvinyl Chloride 6.8 mm (0.27 in) Yellow/Green
PVC - Polyvinyl Chloride 0.6 mm (0.024 in) 8 mm (0.31 in)

Temperature

UL Temperature
80°C

Environmental Suitability

Indoor

AWM Compliance

AWM 10434

Military Compliance

N/A

Update and Revision

Revision Number: 0.150 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.150 Revision Date: 09-07-2025


Report An Error

Références des pièces

Item # Color Putup Type Length EAN
BE43780.001000 Beige Reel 1,000 m 8719605026538
