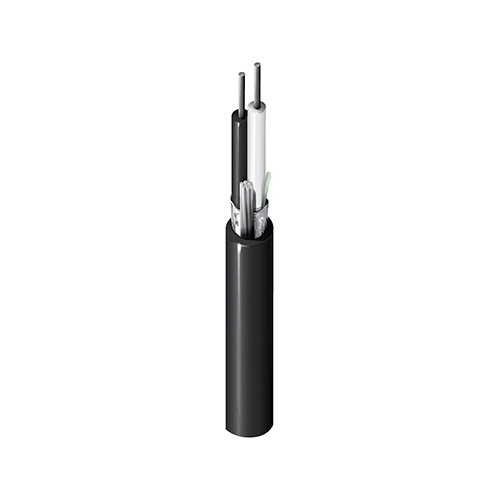

Numéro de produit: 9803

Electronic, 3 C #20 Sol TC, PO Ins, OS, PO Jkt

Electronic, 3 Conductor 20AWG (Solid) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PO Outer Jacket

  • Disponibilité:
    Global
  • Statut:
    Actif
9803
  • 9803
1 de 1

Spécifications

Expand All

Suitable Applications

direct burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications

Conductor

Size Stranding Material
20 Solid TC - Tinned Copper

Insulation

Material Nom. Thickness Color Code
PP - Polypropylene 0.013 in (0.33 mm) White, Black, Red

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Outer Jacket

Material Nom. Thickness Nom. Diameter
PE - Polyethylene 0.035 in (0.89 mm) 0.205 in

Outer Jacket1 Table Notes

HDPE

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
10.5 Ohm/1000ft (34.4 Ohm/km) 23 pF/ft (75 pF/m) 42 pF/ft (140 pF/m) 3.9 Amps per Conductor at 25ºC

Nom Outer Shield DCR@Cond DCR1-cnv

12 Ohm/1000ft (39 Ohm/km)

Voltage

Voltage Rating
350 V RMS

Temperature

Operating
-40°C To +80°C

Max. Pull Tension

37.2 lbs (16.9 kg)

Bulk Cable Weight

23 lbs/1000ft (34 kg/km)

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.394 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.394 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

Références des pièces

Item # Color UPC Footnote
9803 0101000 Black 612825258735 C
