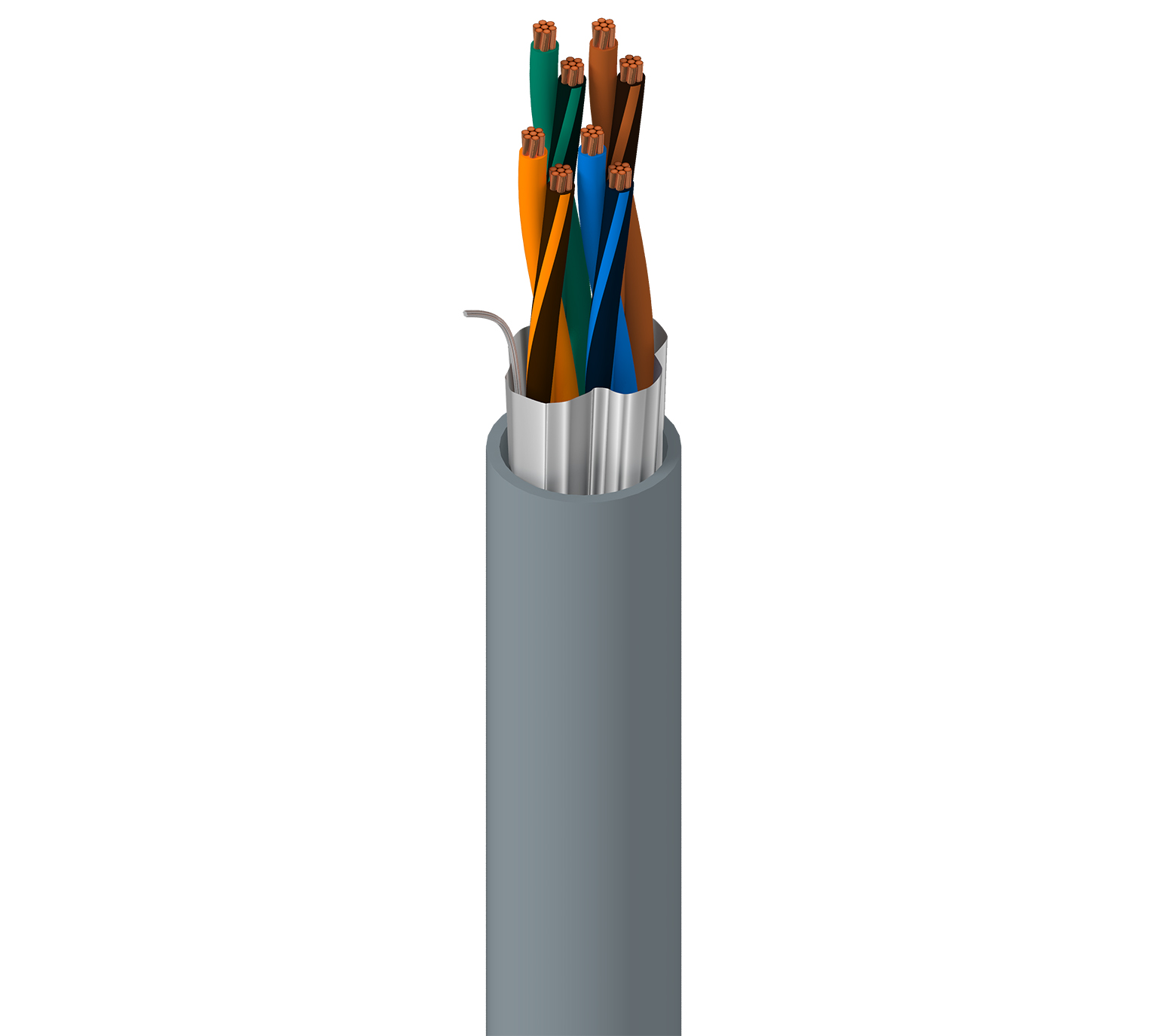

Product Number: BE43886

DataTuff® 5E, 4PR #26 Str BC, PO ins, F/UTP, LSNH Jkt, ECE R118

DataTuff® 5E, 4 Pair AWG 26 Bare Copper - Stranded, Polyethylene insulation, F/UTP - Unshielded shielding, LSZH / FRNC jacket , ECE R118

  • Availability:
    Global
  • Status:
    Active
BE43886
  • BE43886
1 of 1

Spécifications

Expand All

Suitable Applications

Cat5e, For use in buses or other vehicles, cable meets the requirements of the standard ECE R118.03

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Conductor

Element Size Stranding Material No. of Pairs
Individual Pair 26 AWG 7x34 BC - Bare Copper 4

Insulation

Element Material Nom. Insulation Diameter Color Code
Individual Pair PE - Polyethylene 0.95 mm (0.037 in) Black/Blue & Blue, Black/Orange & Orange, Black/Green & Green, Black/Brown & Brown

Cable Core

Description
4 pairs twisted together

Outer Shield

Shield Type Material Drainwire Type
Tape Bi-Laminate (Alum+Poly) 26 AWG (7x34) TC

Outer Shield Table Notes

Aluminum facing inside in contact with drain wire

Outer Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 5.4 mm (0.21 in)

Overall Cable Diameter (Nominal)

5.4 mm (0.21 in)

Electricals

Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
145 Ohm/km (44.2 Ohm/1000ft) 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm

Delay

Max. Delay Skew Nom. Velocity of Prop.
40 ns/100m 60%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 3.2 dB/100m 65.3 62.3 62.1 59.1 64 61 20 40 35
4 6 dB/100m 56.3 53.3 50.3 47.3 52 49 23 34 23
10 9.5 dB/100m 50.3 47.3 40.8 37.8 44 41 25 30 15
16 12.1 dB/100m 47.2 44.2 35.2 32.2 39.9 36.9 25 28 10.9
20 13.5 dB/100m 45.8 42.8 32.2 29.2 38 35 25 27 9
31.25 17.1 dB/100m 42.9 39.9 25.8 22.8 34.1 31.5 23.3 25.1 5.5
62.5 24.8 dB/100m 38.4 35.4 13.6 10.6 28.1 25.1 20.7 22
100 32 dB/100m 35.3 32.3 3.3 0.3 24 21 19 20

High Frequency Table Notes

Limits below 4 MHz are for information only. Reference standard: IEC 61156-5

Transfer Impedance

Frequency Max. Transfer Impedance
1 Mhz Max. 50 mOhm/m
10 Mhz Max. 100 mOhm/m
30 Mhz Max. 200 mOhm/m
100 Mhz Max. 1000 mOhm/m

Transfer Impedance Class

Grade 2

Screening Class

Type II

Screening Table Notes

Coupling Attenuation

Voltage

Voltage Rating
72 V DC

Temperature

Operating Installation
-30°C to +60°C 0°C To +50°C

Bend Radius

Stationary Min. Installation Min.
21 mm (0.83 in) 42 mm

Max. Pull Tension

45 N (10 lbf)

Bulk Cable Weight

31 kg/km

Environmental Suitability

Indoor - Euroclass Eca

Flammability / Reaction to Fire

IEC 60332-1-2, UN ECE R118.03

CPR Compliance

CPR Euroclass: Eca

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA 568.2-D

ISO/IEC Compliance

ISO/IEC 11801-1

CENELEC Compliance

EN 50173-1, Segregation class according EN50174-2 = a

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark

Update and Revision

Revision Number: 0.162 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.162 Revision Date: 09-07-2025


Report An Error

Références des pièces

Item # Color Putup Type Length EAN
BE43886.00500 Gray, RAL 7032 Reel 500 m 8719605162052
