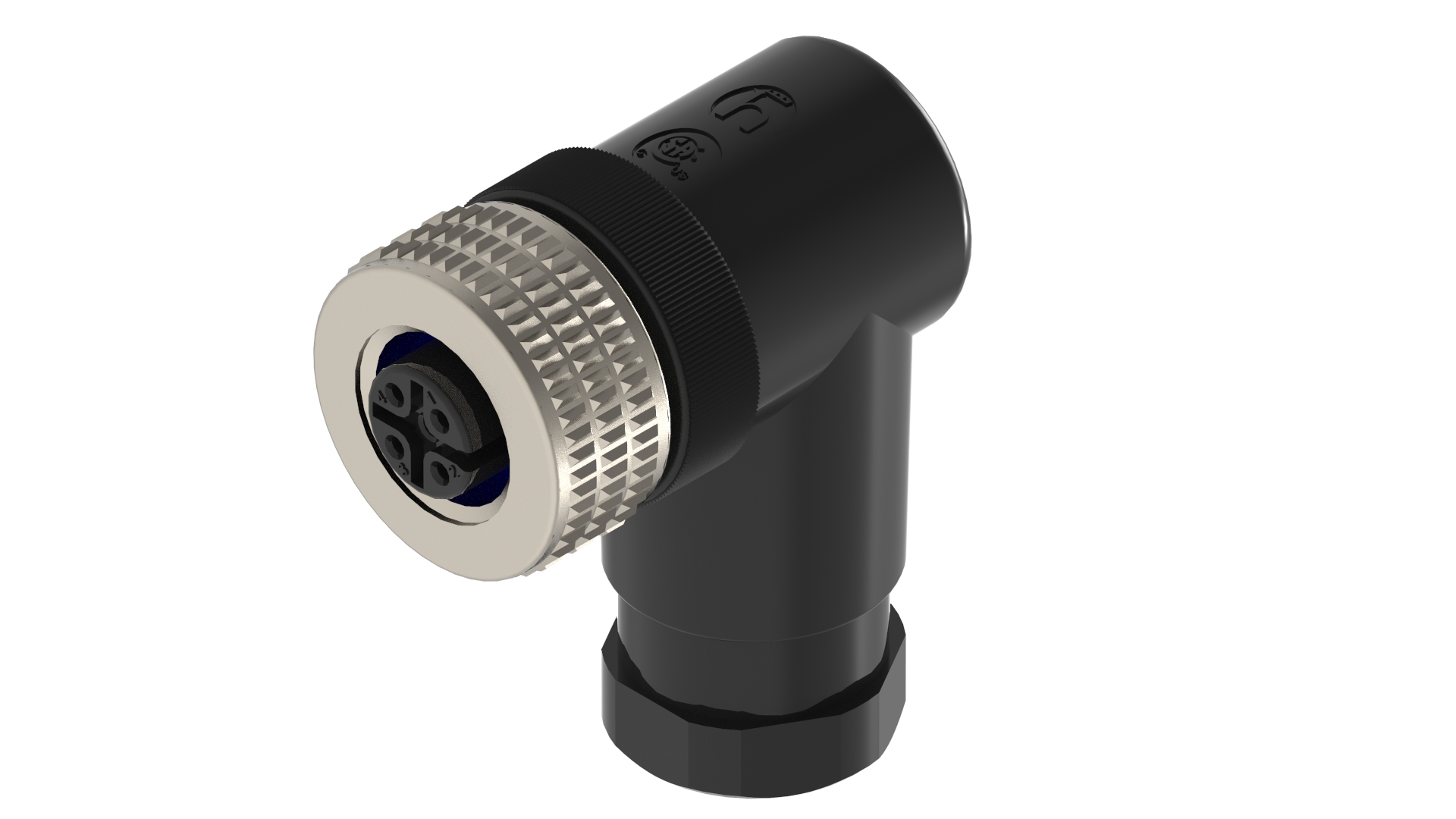

Sensor Actuator Connectors - ELWIKA 5012 PG9 Au

M12 Field Attachable Connector: female, angled, 5-pin, A-coded, unshielded, black housing, screw type, 50 V AC / 60 V DC

Spécifications

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	M12 Standard
Connector Type	Field attachable
Side 1 Type of Contact/Gender	female
Connector Design	angled
Number of Pins	5
Coding, Side 1	A
Attachment Type	Coupling Nut
Voltage Rating	60 V
Rated Voltage (CSA)	60 V AC/DC
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	4 A
Rated Current (CSA)*	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Type of Connection	screw terminal
Maximum Wire Cross Section	max. 0,75 mm²
Cable Gland	PG9
Strain-Relief	clamping cage
Suitable Cables	Ø6 - Ø8 mm
Ambient Temperature (Operation)*	-25°C to +90°C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-2
Housing Material	PA-GF
Housing Color	black
Flammability Class (Housing)	UL 94 V-0
Cable Gland Material	PA-GF
Cable Gland Gasket	CR, black
Attachment Material	GD-Zn
Attachment Plating	nickel-plated
O-Ring Material	FKM/NBR

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

RoHS Compliant	yes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
