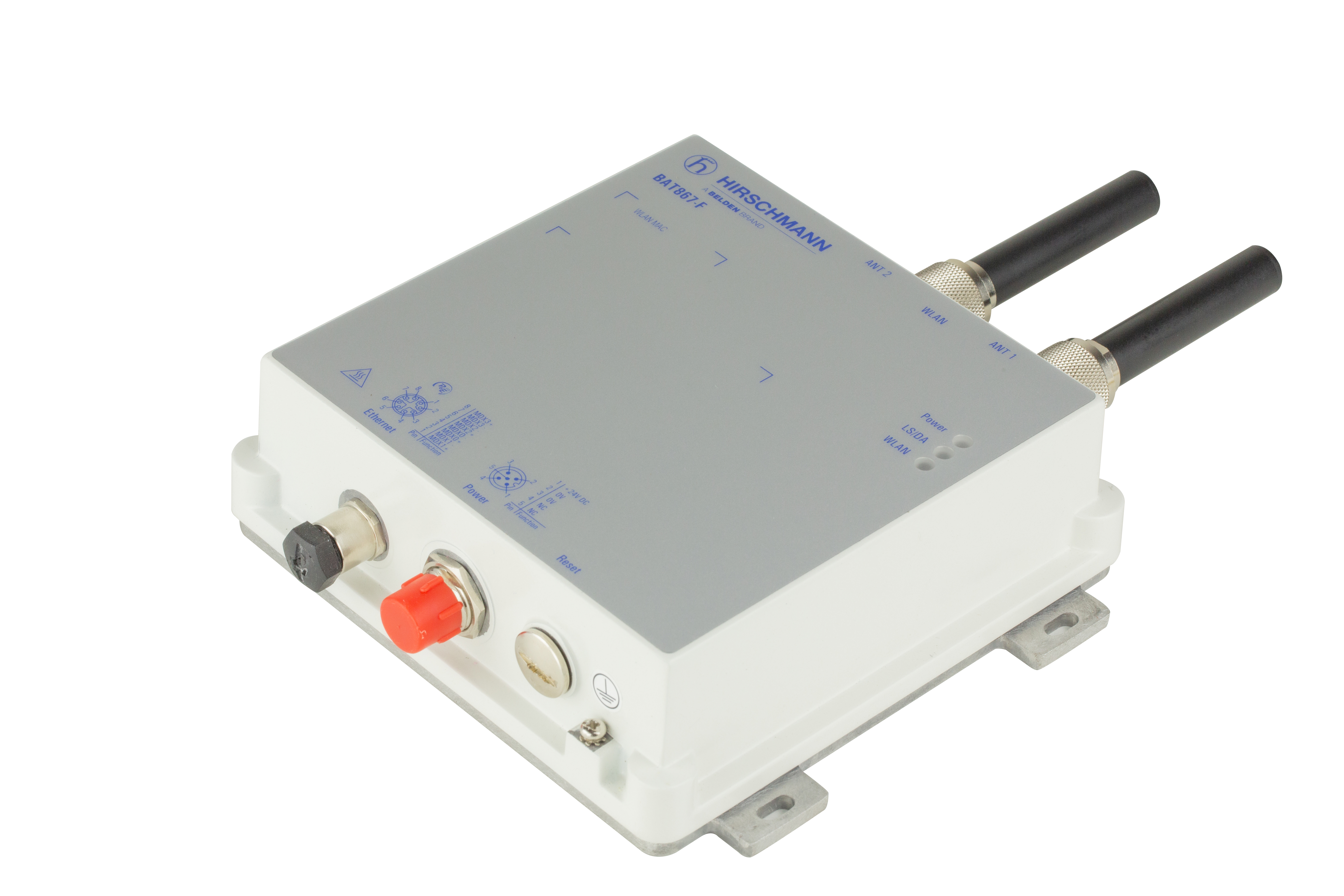

Numéro de produit: BAT867-F Europe for Transportation

802.11ac IP65/IP67 WLAN Gateway, 2x2 MIMO, Dual Band, Europe, Accessories included

802.11ac IP65/IP67 WLAN Gateway, 2x2 MIMO, Dual Band,, Europe,, Accessories included,, Connectors included

  • Disponibilité:
    Global
  • Statut:
    Limited Std Warranty Period

Spécifications

Port Type and Quantity

1x Ethernet M12 X-Coded,, 1x Power M12 A-Coded

Life Cycle

Limited Std Warranty Period - the product is no longer manufactured but service may be available for active equipment

Discontinuation Announcement Date

2024-11-14

Last Order Date

2025-03-31

Last Delivery Date

2025-07-31

Last Service Date

2030-12-31

Scope of delivery

Device, safety instructions, dust protection caps,, EU declaration of conformity,, outdoor safety instructions,, 2x Antenna (BAT-ANT-N-3AGN-IP67), 1x 50 Ω terminating resistor, Field attachable Gigabit Ethernet connector “X”-coded (942 083-001), M12 power supply plug (ELKA 5012 PG7),, Field attachable Gigabit Ethernet connector “X”-coded (942 083-001), M12 power supply plug (ELKA 5012 PG7)

Local Management and Device Replacement

Webinterface, HiDiscovery v1, Config files and scripts, Different config levels (factory, customer-specific, rollout, running)

Ethernet Connector Type

1x 10/100/1000Mbit/s

Power Supply

PoE PD via Ethernet M12 X-Coded,, 24VDC via M12 A-coded 5-pin,, field assembly connectors included,, field assembly connectors included

Modules

Description Antenna Connector Additional Radio Features Radio Protocol Frequency Band Modulation Access Point Functionality Client / STA Functionality
Module 1 2x N-Type Female Socket, requires N-Type Male Connectors on the Antenna 2x2 MIMO (configurable). Up to 2 streams (configurable). Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC) IEEE 802.11a/b/g/n/ac WLAN interface as per IEEE 802.11ac , 802.11F (IAPP) as Access Point, 802.11r as Access Point Supports 2.4 GHz or 5 GHz: 2412-2472 MHz or 5180-5825 MHz (regulatory restrictions apply depending on the country of operation) OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM; Note: MCS numbering changed with 11ac. Supported rates with up to 2 streams: MCS0-MCS9. Channel widths: 20MHz, 40MHz and 80MHz Yes (Free selection between Access Point, Access Client and Point-to-Point functionality separately in software). Operates as Managed Access Point in combination with a BAT Controller (WLC). PMK Caching, Preauthentication, OKC (Opportunistic Key Caching). Yes (Can be switched in software between AP, P2P, Client)

Operating Voltage

PoE PD 802.3af Class 3,, 24 VDC (18-32 VDC)

Power Consumption

Maximum power consumption : 9 W

Monitoring

Syslog (UDP), SNMPv1/2c/3, (W)LANMonitor, Console, Email (SMTP)

Other services

DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy) , DynDNS client , PPPoE , FTP server , E-Mail via SMTP

Software features

High performance operating system HiLCOS. Supports WLAN functions, routing, firewall, VLAN and redundancy. IPv4 and IPv6.

Operating system

HiLCOS, stores two separate firmware versions for fallback

Switching

IGMP Snooping, VLAN (802.1Q), Switching over WLAN (Client Briding or P2P)

Redundancy

RSTP, VRRP v2

Diagnostics

System log, reboot log, signal strength, Trace (via Lantools or Console), LEDs, IPerf Server and Client

Configuration

Text file configuration and script, HTTP(s), Console (SSH, Telnet), SNMPv1/2c/3, LANConfig

Time synchronisation

SNTP Client, SNTP Server

Routing

Static unicast routing, RIP, Multinetting, IP Masquerading, Port Forwarding, Proxy ARP, 1-to-1 NAT, 1-to-N NAT, N-to-N NAT

Management Software

Industrial HiVision , LANConfig,, optional BAT Controller (WLC for AccessPoint mode)

Operating temperature

-40-+70 °C

Relative humidity (non-condensing)

10-95 %

Dimensions (WxHxD)

172 mm x 150 mm x 50 mm

Mount Type

Wall mounting

Basis Standard

CE, RED

Transportation

EN 50121-4:2016

Guarantee

60 months (please refer to the terms of guarantee for detailed information)

Product Documentation

https://www.doc.hirschmann.com

Update and Revision

Revision Number: 0.81 Revision Date: 02-20-2026

Update and Revision

Revision Number: 0.81 Revision Date: 02-20-2026


Références des pièces

Item # Type
942276200 BAT867-FEUW99AW9J9BT699E999ZHXX.XX.XXXX
