Numéro de produit: 2127A

Fieldbus, 1 Pr #16 Str TC, XLPE Ins, OS, TPE Jkt, 600V TC

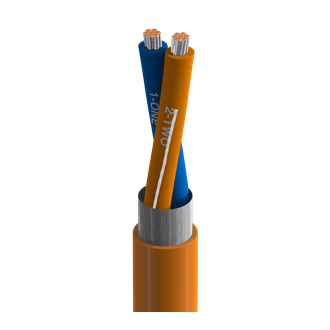

Fieldbus, 1 Pair 16AWG (7x24) Tinned Copper, XLPE Insulation, Overall Beldfoil® Shield, TPE Outer Jacket, 600V TC

  • Disponibilité:
    Global
  • Statut:
    Actif
2127A
  • 2127A
1 de 1

Spécifications

Expand All

Suitable Applications

harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 16 AWG 7x24 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) XLPE - Cross-Linked Polyethylene (Thermoset) 0.038 in (0.97 mm) 0.135 in (3.43 mm) Blue, Orange and Numbered

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (7x26) TC

Outer Jacket

Separator Material Nom. Thickness Nom. Diameter Ripcord
Polyester Tape TPE - Thermoplastic Elastomer 0.047 in (1.2 mm) 0.374 in (9.50 mm) Yes

Overall Cable Diameter (Nominal)

0.374 in (9.50 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Shield Max. Capacitance Unbalance Nom. Characteristic Impedence Nom. Inductance Nom. Velocity of Prop. Max. Current
Pair(s) 4.5 Ohm/1000ft 22 pF/ft (72 pF/m) 1.2 pF/ft 100 Ohm 0.22 µH/ft (0.72 µH/m) 64% 11.6 Amps per Conductor at 25ºC

Nom Outer Shield DCR@Cond DCR1-cnv

5.1 Ohm/1000ft (17 Ohm/km)

High Frequency (Nominal/Typical)

Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 0.039 0.065 dB/100ft

Voltage

UL Voltage Rating
600 V

Temperature

UL Temperature Operating
90°C -40°C to +90°C Wet/Dry

Temperature Table Notes

-40C

Bend Radius

Stationary Min. Installation Min.
3.75 in (95.3 mm) 3.75 in (95.3 mm)

Max. Pull Tension

93 lbs (42 kg)

Bulk Cable Weight

67 lbs/1000ft

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial

Flammability / Reaction to Fire

UL 1581 Vertical Tray, FT4, IEEE 1202, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 336, ITC, PLTC

AWM Compliance

AWM I/II A/B

CEC / C(UL) Compliance

CIC, TC

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

Other Standard Compliance(s)

ISA/SP-50 Type A

Update and Revision

Revision Number: 0.562 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.562 Revision Date: 09-07-2025


Report An Error

Références des pièces

Item # Color Putup Type Length UPC
2127A 0061000 Blue, Light Reel 1,000 ft 612825129943
2127A 0065000 Blue, Light Reel 5,000 ft 612825129950
2127A 0035000 Orange Reel 5,000 ft 612825129936
