Product Number: 7817A

SMPTE 311M Double Jacket, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG

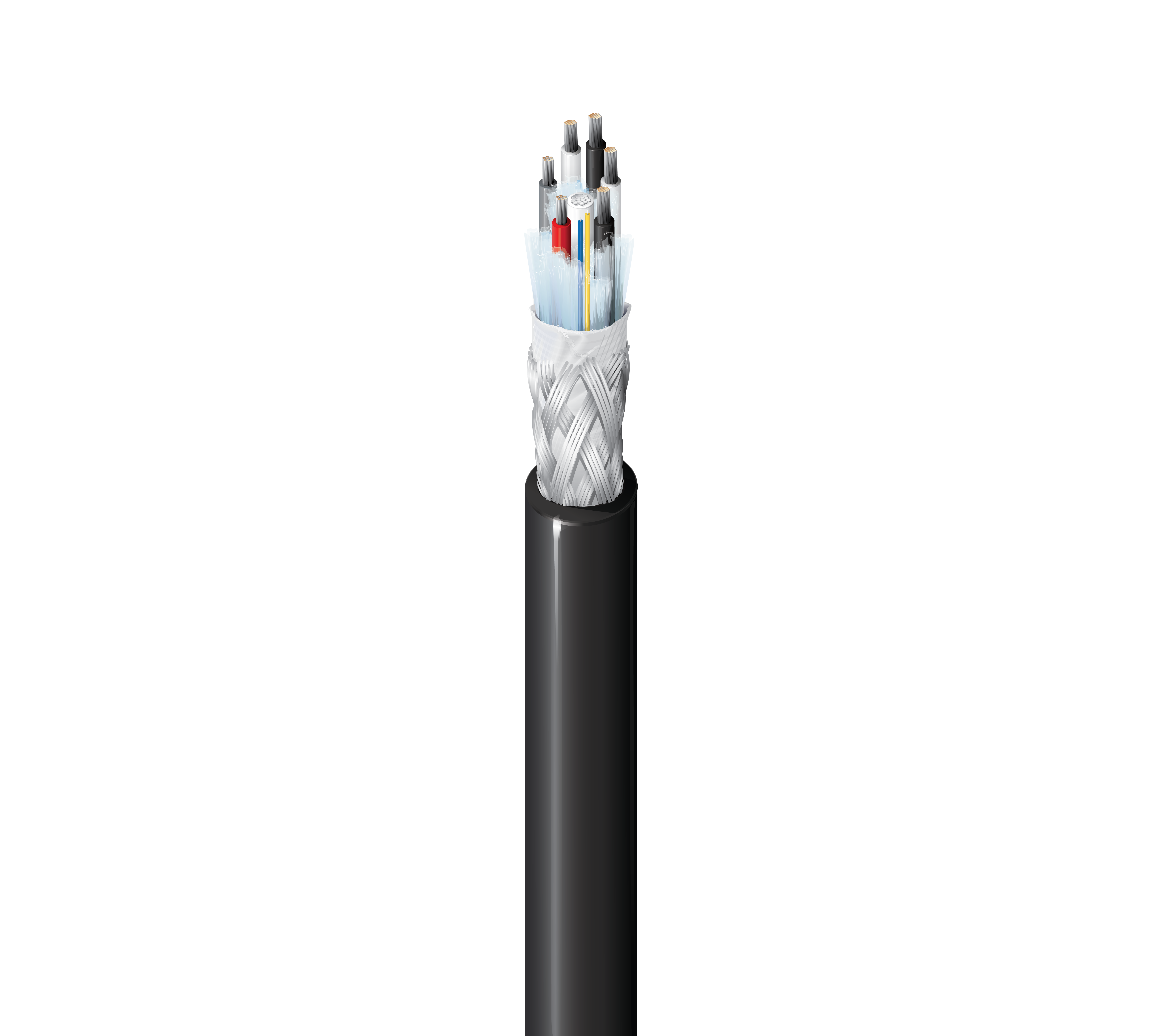

12mm Double Jacketed SMPTE 311M Studio Cable, 4 power conductors, SM fibers w/24 and 20 AWG stranded (7x32 and 19x32) TC conductors, PE insulation, TC braid shield (85% coverage), Belflex® jacket.

  • Availability:
    Global
  • Status:
    Active
7817A
  • 7817A
1 of 1

Spécifications

Expand All

Suitable Applications

SMPTE 311M Camera Cable

Fiber Type

OS2, G.657.A2

Fiber Core Diameter

9.5/125 microns

Fiber Buffer Material

PVC - Polyvinyl Chloride

Fiber Buffer Diameter

900 µm

Fiber Count

2

Fiber Color Code

Yellow, Blue

Conductor Size

24 AWG, 20 AWG

Material

PVC - Polyvinyl Chloride

Jacket Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.472 in (12.0 mm)

Optical Characteristics

Wavelength 1310 nm 1550 nm
Max. Attenuation 0.50 dB/km 0.50 dB/km

Bulk Cable Weight

108 lbs/1000ft (161 kg/km)

Operating Temperature Range

-40°C to 70°C

Installation Temperature Range

-10°C to 70°C

Storage Temperature Range

-40°C to 70°C

Environmental Suitability

Outdoor

Flammability / Reaction to Fire

VW-1

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Bend Radius is based upon (FOTP-37) @ 20°C. Plenum version and other conductor counts/diameters available by special order.

Update and Revision

Revision Number: 0.153 Revision Date: 09-25-2025

Update and Revision

Revision Number: 0.153 Revision Date: 09-25-2025


Report An Error

Références des pièces

Item # Put-Up Type Length UPC
7817A 0101000 Reel 1,000 ft 612825189909
