Numéro de produit: BE41339

Lead Wire, #8 Str BC, PVC Ins, AWM 1017

UL AWM ST1017 VW1 8AWG/NX41B CSA TEW FT1

  • Disponibilité:
    EMEA
  • Statut:
    Actif
BE41339
  • BE41339
1 de 1

Spécifications

Expand All

Suitable Applications

UL Appliance Wiring Material Subject 758 Style 1017, 80C, 600 volt, VW-1, oil 60C; CSA Equipment wires C22.2 no. 127 Type TEW, 105C, 600V, FT1, oil 60C

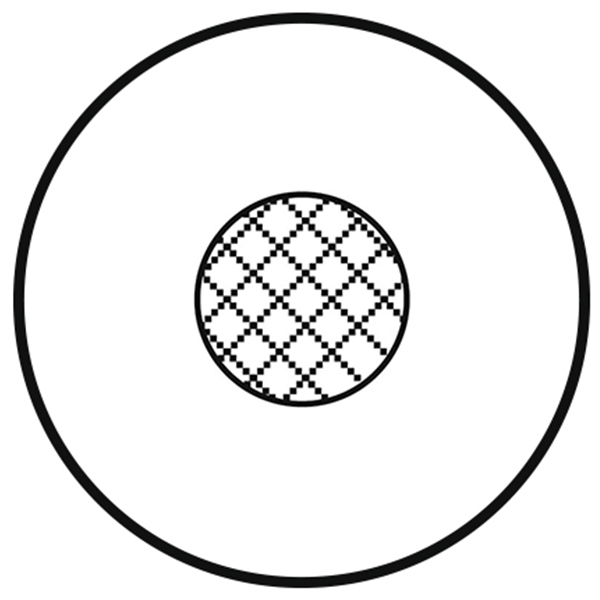

Conductor

Size Stranding Material Notes
8 AWG Stranded BC - Bare Copper Construction: 2156x0.071

Insulation

Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 1.19 mm (0.0469 in) 7.5 mm (0.30 in)

Electricals

Max. Conductor DCR
2.23 Ohm/km

Voltage

UL Voltage Rating
600 V

Temperature

UL Temperature
80°C (CSA 105°C)

Environmental Suitability

Indoor, Oil Resistance

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 1017, TEW

Military Compliance

N/A

Update and Revision

Revision Number: 0.171 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.171 Revision Date: 09-07-2025


Report An Error

Références des pièces

Item # Color Putup Type Length EAN
BE41339.041400 Blue Reel 1,400 m 8719605025678
BE41339.031400 Red Reel 1,400 m 8719605025661
BE41339.01500 Yellowgreen Reel 500 m 8719605025630
BE41339.011400 Yellowgreen Reel 1,400 m 8719605025623
