Numéro de produit: 3106A

RS-485, 1 Pr, 22AWG, Str TC, PE Ins, with OS, 1C 22AWG Str, PVC Ins, OA TC Brd, PVC Jkt, CM, PLTC, Sun Res, Oil Resistant

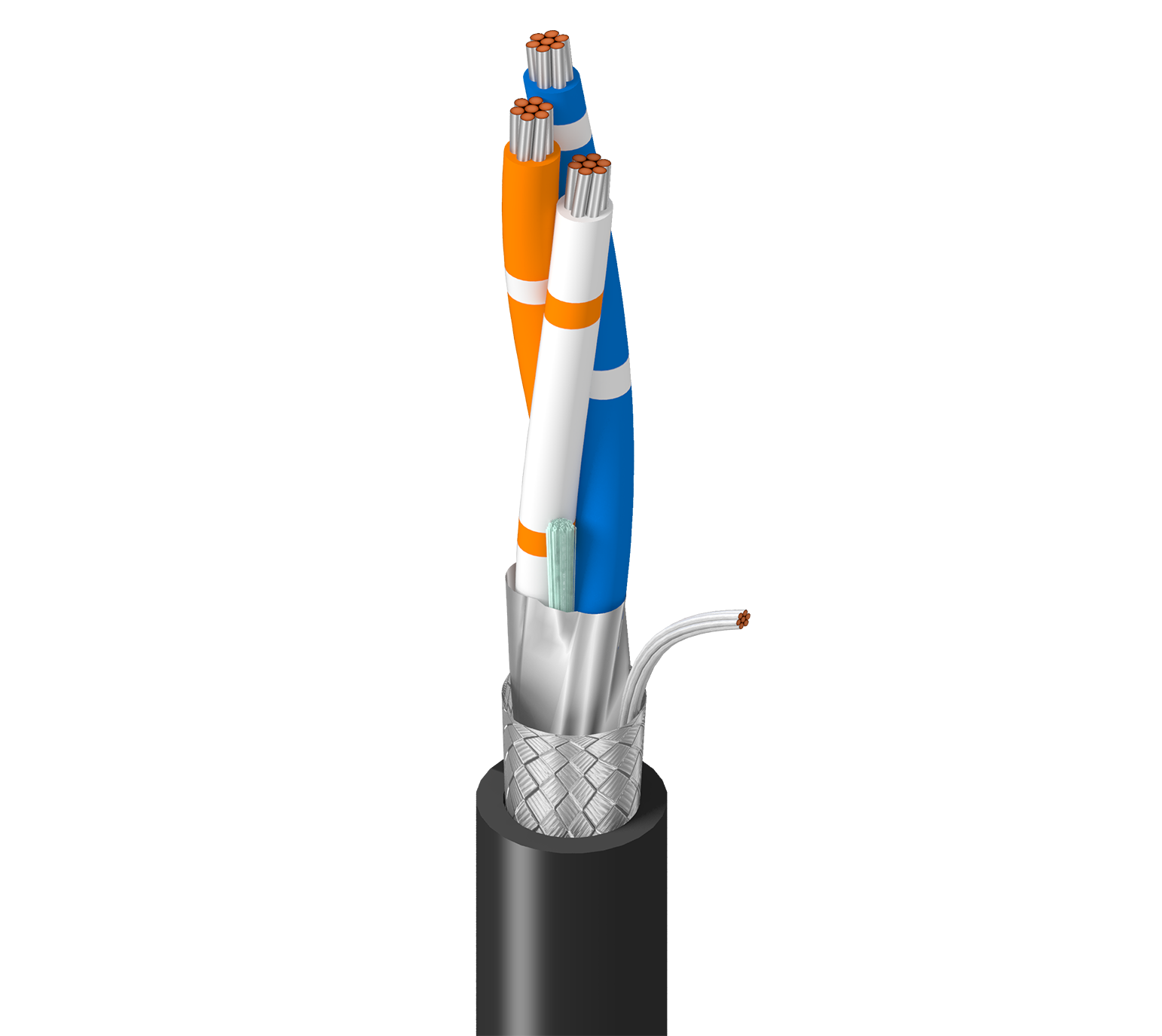

RS-485, 120 Ohm, 1 pair 22AWG (7x30) tinned copper Datalene® insulaton, with Foil Shield, 1 Conductor 22AWG (7x30) Tinned Copper, PVC Insulated, Overall 65% Tinned Copper Braid, PVC jacket, CM, PLTC, SUN RES and oil-resistant

  • Disponibilité:
    Global
  • Statut:
    Actif
3106A
  • 3106A
1 de 1

Spécifications

Expand All

Suitable Applications

harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7x30 TC - Tinned Copper
Conductor(s) 1 22 AWG 7x30 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) PE - Polyethylene (Foam) 0.033 in (0.84 mm) 0.095 in (2.4 mm) White/Orange Stripe & Orange/White Stripe HDPE
Conductor(s) PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.062 in (1.6 mm) Blue/White Stripe

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC
Braid Tinned Copper (TC) 65%

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.047 in (1.2 mm) 0.310 in (7.87 mm)

Overall Cable Diameter (Nominal)

0.310 in (7.87 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Inductance Nom. Velocity of Prop. Max. Current
Pair(s) 18.2 Ohm/1000ft 11 pF/ft (36 pF/m) 20.9 pF/ft (68.6 pF/m) 120 Ohm 0.203 µH/ft (0.666 µH/m) 78% 6 Amps per Conductor at 30ºC
Conductor(s) 18.2 Ohm/1000ft (59.7 Ohm/km) 6 Amps per Conductor at 30ºC

Nom Outer Shield DCR@Cond DCR1-cnv

4.544 Ohm/1000ft (14.91 Ohm/km)

High Frequency (Nominal/Typical)

Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 1 0.5 dB/100ft

Voltage

UL Voltage Rating
300 V (CM, PLTC)

Temperature

UL Temperature Operating
60°C -20°C to +60°C

Bend Radius

Stationary Min. Installation Min.
3.6 in (91 mm) 3.6 in (91 mm)

Max. Pull Tension

75.26 lbs (34.14 kg)

Bulk Cable Weight

48 lbs/1000ft

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

UL 1685 UL Loading, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

NEC / UL Compliance

Article 725, Article 800, CM, PLTC

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

Notes

Oil Resistance: Passes Oil Res II Per UL1277, Table 10.17. For CPE jacketed version order YR46721.

Update and Revision

Revision Number: 0.594 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.

Update and Revision

Revision Number: 0.594 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.

Report An Error

Références des pièces

Item # Color Putup Type Length UPC/EAN Footnote
3106A.00152 Black Reel 152 m 8719605005892
3106A.00305 Black Reel 305 m 8719605005915
3106A 010500 Black Reel 500 ft 612825141662 C
3106A 0101000 Black Reel 1,000 ft 612825141655 C
3106A.001525 Black Reel 1,525 m 8719605005908
3106A 0105000 Black Reel 5,000 ft 612825141679 C N
