Numéro de produit: 7962A

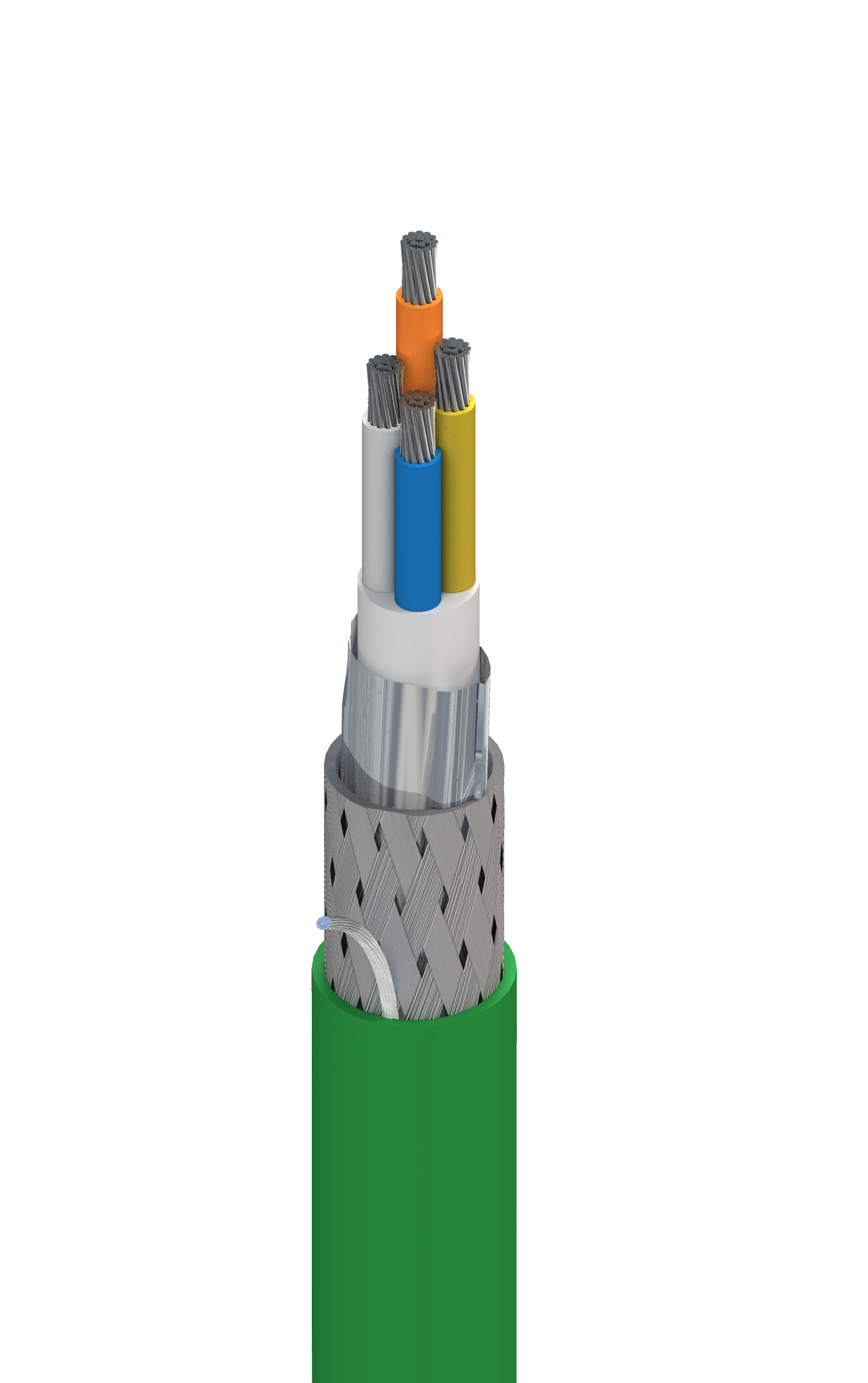

DataTuff® Cat 5e, Quad (2 Pr) #22 Str TC, PO Ins, OS+TC Brd, TPE Jkt, CM CMX-Outdoor

Industrial Ethernet Cat 5e, Quad (2 Pair) 22AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, TPE Outer Jacket, CM CMX-Outdoor

  • Disponibilité:
    Global
  • Statut:
    Actif
7962A
  • 7962A
1 de 1

Spécifications

Expand All

Suitable Applications

PROFINET, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Conductor

Element Size Stranding Material
Quad(s) 22 AWG 19x34 TC - Tinned Copper

Insulation

Material Color Code
PO - Polyolefin White, Blue, Yellow, Orange

Inner Jacket

Material Nom. Diameter
PE - Polyethylene 0.169 in (4.29 mm)

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%

Outer Jacket

Material Nom. Diameter Ripcord
TPE - Thermoplastic Elastomer 0.276 in (7.01 mm) No

Overall Cable Diameter (Nominal)

0.276 in (7.01 mm)

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
57 Ohm/km (17 Ohm/1000ft) 150 pF/ft

Delay

Max. Delay Nom. Velocity of Prop.
552 ns/100m 70%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.6 65.3 62.3 63.2 63.8 60.8 23 100 ± 20.2 105 ±10
4 4.8 56.3 53.3 56.3 51.7 48.7 23 100 ± 14.2 100 ±10
8 6.8 51.8 48.8 46.2 45.7 42.7 23 100 ± 11.3 100 ±10
10 7.6 50.3 47.3 43.9 43.8 40.8 25 100 ± 11.3 100 ±10
16 9.7 47.3 44.3 35.2 39.7 36.7 25 100 ± 11.3 100 ±10
20 10.8 45.8 42.8 36.5 37.7 34.7 25 100 ± 11.3 100 ±10
25 12.2 44.3 41.3 34.2 35.8 32.8 25.5 100 ± 11.3 100 ±10
31.25 13.7 42.9 39.9 31.3 33.9 30.9 23.6 100 ± 13.2 100 ±10
62.5 19.8 38.4 35.4 21.6 27.8 24.8 21.5 100 ± 16.9 100 ±10
100 25.6 35.3 32.3 17.1 23.8 20.8 20.1 100 ± 20.0 100 ±10

Voltage

UL Voltage Rating
300 V (CM, CMX-Outdoor), 600 V (AWM 20626)

Temperature

UL Temperature Operating Installation Storage
75°C -40°C To +80°C -20°C To +60°C -40°C To +80°C

Bend Radius

Stationary Min.
2.560 in (65.02 mm)

Max. Pull Tension

55 lbs (25 kg)

Bulk Cable Weight

45 lbs/1000ft (67 kg/km)

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

UL 1685 (UL Loading), FT4, IEEE 1202 Vertical Tray Flame Test

NEC / UL Compliance

Article 800, CM, CMX-Outdoor, ITC, PLTC

AWM Compliance

AWM 20626

CEC / C(UL) Compliance

CMX-Outdoor

NEMA Compliance

NEMA WC-63.1

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 5e

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-6

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Operating Temperature subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. Limits below 4 MHz are for information only.

Update and Revision

Revision Number: 0.578 Revision Date: 10-08-2025

Update and Revision

Revision Number: 0.578 Revision Date: 10-08-2025


Report An Error

Références des pièces

Item # Color Putup Type Length UPC/EAN
7962A+0085 Green Reel 85 m 8719605196156
7962A.00305 Green Reel 305 m 8719605016812
7962A.00610 Green Reel 610 m 8719605016829
7962A 1SW1000 Green, RAL 6018 612825367024
7962A 1SW2000 Green, RAL 6018 612825367031
