Numéro de produit: 74010EPE

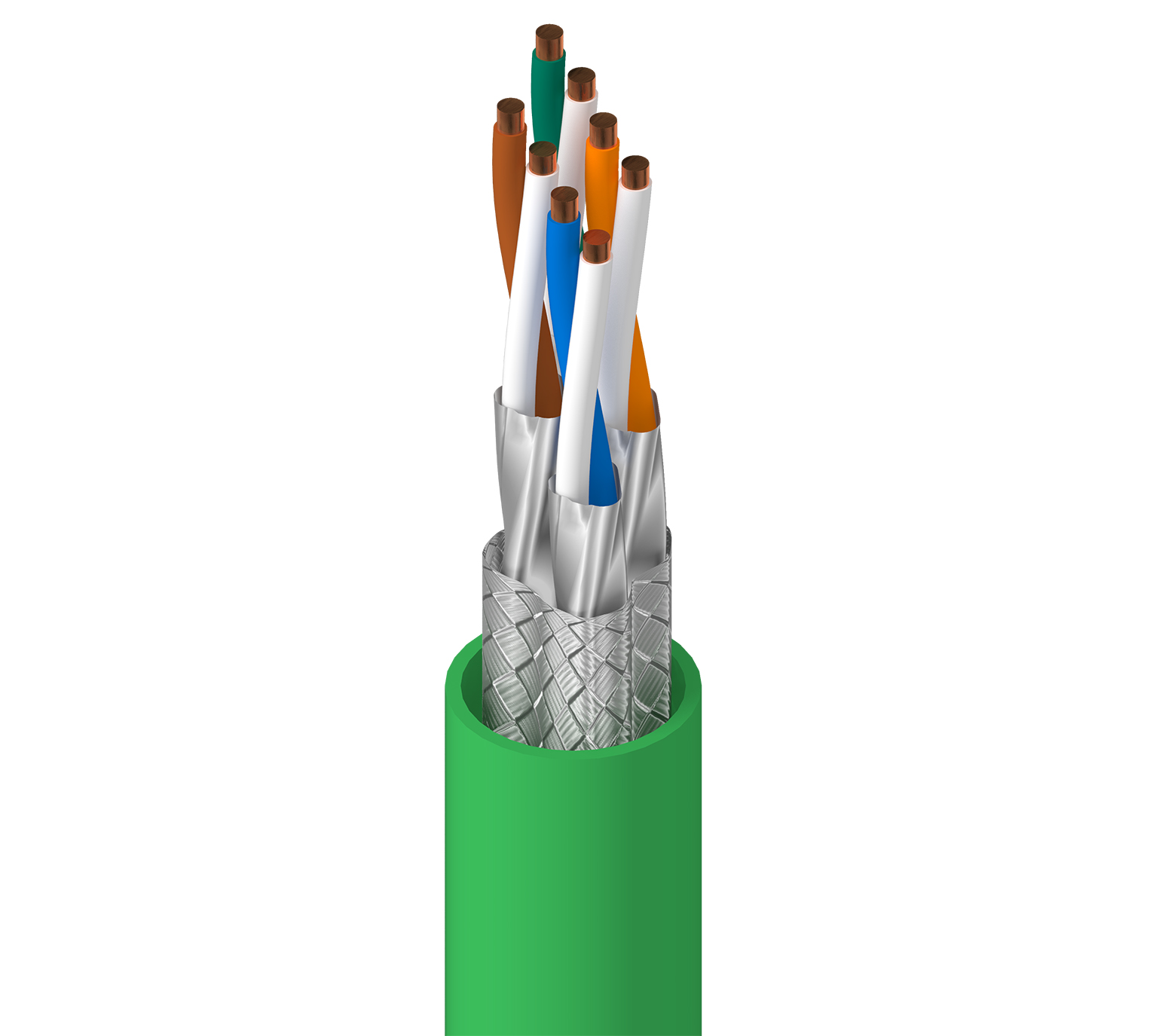

DataTuff® 6A, 4PR #22 Sol BC, PO ins, S/FTP, PO jkt, PROFINET Type A, Outdoor

DataTuff® 6A, 4 Pair AWG 22 Bare Copper - Solid, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, Polyethylene jacket , PROFINET Type A, Outdoor

  • Disponibilité:
    Global
  • Statut:
    Actif
74010EPE
  • 74010EPE
1 de 1

Spécifications

Expand All

Suitable Applications

PROFINET Cat6A, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Conductor

Size Stranding Material No. of Pairs
22 AWG Solid BC - Bare Copper 4

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 1.60 mm (0.0630 in) White & Blue, White & Orange, White & Green, White & Brown

Inner Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Outer Shield

Shield Type Material Coverage
Braid Tinned Copper (TC) 80%

Outer Jacket

Material Nom. Diameter
PE - Polyethylene 8.7 mm (0.34 in)

Overall Cable Diameter (Nominal)

8.7 mm (0.34 in)

Electricals

Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
59.1 Ohm/km (18.0 Ohm/1000ft) 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm

Delay

Max. Delay Skew Nom. Velocity of Prop.
25 ns/100m 78%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. RL (Return Loss) [dB] Min. ELTCTL [dB]
1 2 dB/100m 78 76 73 78 20 35
4 3.7 dB/100m 78 74.3 71.3 78 23 23
10 5.9 dB/100m 78 72.1 69.1 75.3 25 15
16 7.4 dB/100m 78 70.6 67.6 71.2 25 10.9
31.2 10.4 dB/100m 78 67.6 64.6 65.4 23.6 5.1
62.5 14.9 dB/100m 75.5 60.6 57.6 59.4 21.5
100 19 dB/100m 72.4 53.4 50.4 55.3 20.1
125 21.4 dB/100m 70.9 49.6 46.6 53.4 19.4
200 27.5 dB/100m 67.9 40.4 37.4 49.3 18
250 31 dB/100m 66.4 35.5 32.5 47.3 17.3
300 34.2 dB/100m 65.2 31.1 28.1 45.8 17.3
500 50.1 dB/100m 60.7 10.6 7.6 39.7 17.3

High Frequency Table Notes

Limits below 4MHz are for information only

Screening Class

Type I

Temperature

Operating Installation Storage
-40°C to +80°C 0°C To +60° -40°C to +80°C

Bend Radius

Stationary Min. Installation Min.
45 mm (1.8 in) 90 mm

Environmental Suitability

Outdoor

Data Category

Category 6A

ISO/IEC Compliance

ISO/IEC 11801-1

CENELEC Compliance

Segregation class according EN50174-2 = d

European Directive Compliance

EU CE Mark

Update and Revision

Revision Number: 0.103 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.103 Revision Date: 09-07-2025
