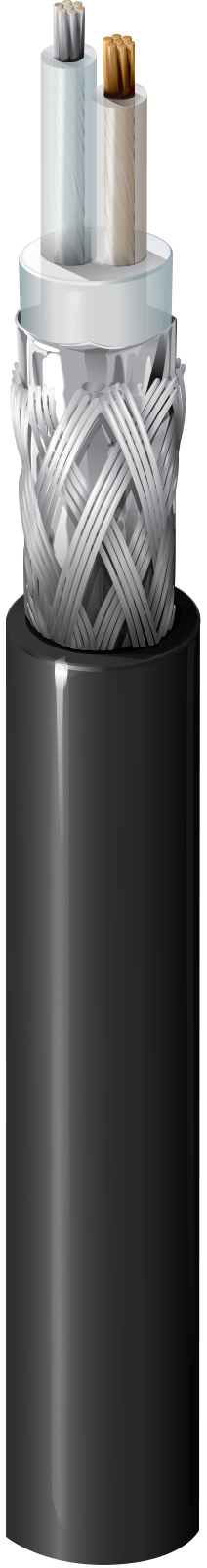

Armored Data Cable

20 AWG stranded (7x28) one tinned copper conductor, one bare copper conductor, polyethylene insulation, polyethylene inner jacket, Duofoil® (100% coverage) plus a tinned copper braid shield (85% coverage), LSZH outer jacket, Flame resistance IEC 60332-3C

Disponibilité:

Global
Statut:

Actif

Citer

Spécifications
Références des pièces
Ressources

Spécifications

Expand All

Product Overview

Suitable Applications	Twinaxial instrumentation and computer cable; For data transmission applications

Construction Details

Conductor

Element	Size	Stranding	Material
Insulated Conductor(s) A	20	7x28	BC - Bare Copper
Insulated Conductor(s) B	20	7x28	TC - Tinned Copper

Insulation

Element	Material	Nom. Insulation Diameter	Color Code
Insulated Conductor(s) A	PE - Polyethylene	2.11 mm (0.0831 in)	Clear
Insulated Conductor(s) B	PE - Polyethylene	2.11 mm (0.0831 in)

Outer Shield

Outer Shield Type	Material	Material Trade Name	Coverage
Tape	Tri-Laminate (Alum+Poly+Alum)	Duofoil®	85%
Braid	Tinned Copper (TC)		85%

Outer Jacket

Material	Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant)	8.6 mm

Electrical Characteristics

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.98 dB/100m
10 MHz	3.94 dB/100m
50 MHz	9.19 dB/100m
100 MHz	13.45 dB/100m
200 MHz	21 dB/100m
400 MHz	33.46 dB/100m

Electricals

Nom. Conductor DCR	Nom. Outer Shield DCR	Nom. Capacitance Cond-to-Shield	Nom. Characteristic Impedance	Nom. Velocity of Prop.
31.2 Ohm/km (9.51 Ohm/1000ft)	6.6 Ohm/km (2.0 Ohm/1000ft)	75.5 pF/m (23.0 pF/ft)	100 Ohm	66%

Mechanical Characteristics

Temperature

Installation	Storage
-15°C To +80°C	-45°C To +80°C

Bend Radius

Installation Min.
86 mm

Standards and Compliance

Environmental Suitability	Indoor - Euroclass Eca
Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-3-24
CPR Compliance	CPR Euroclass: Eca; CPR UKCA Class: Eca
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
UK Regulation Compliance	UKCA Mark

History

Update and Revision	Revision Number: 0.253 Revision Date: 09-07-2025

Information

Update and Revision	Revision Number: 0.253 Revision Date: 09-07-2025

Report An Error

Références des pièces

Item #	Color	Putup Type	Length	EAN
9207NH.00100	Black	Reel	100 m	8719605020222
9207NH.00152	Black	Reel	152 m	8719605020246
9207NH.00305	Black	Reel	305 m	8719605020253
9207NH.00500	Black	Reel	500 m	8719605020260
9207NH.001000	Black	Reel	1,000 m	8719605020239
9207NH.01250	Gray	Reel	250 m	8719605020284
9207NH.011000	Gray	Reel	1,000 m	8719605020277
