Product Number: 3076F

Fieldbus, 1 Pr #18 Str TC, PP Ins, OS, PVC Jkt, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM

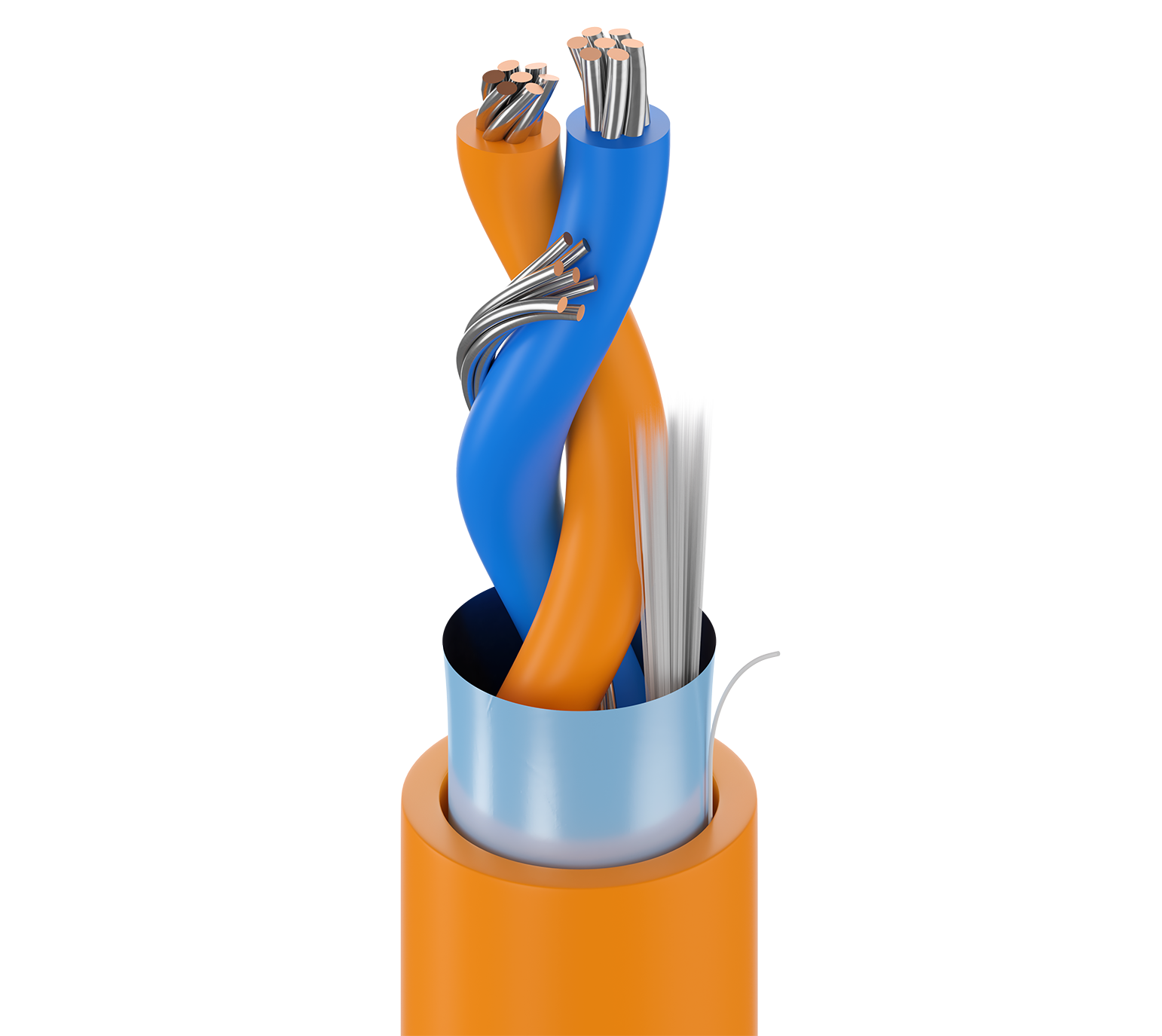

Fieldbus, 1 Pair 18AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM

  • Availability:
    Global
  • Status:
    Active
3076F
  • 3076F
1 of 1

Spécifications

Expand All

Suitable Applications

exposure to rodent, crush, or cut through force, harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 18 AWG 7x26 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP - Polypropylene 0.022 in (0.56 mm) 0.088 in (2.2 mm) Blue & Orange

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7x28) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.050 in (1.3 mm) 0.280 in (7.11 mm)

Outer Jacket1 Table Notes

Jacket OD +/- 0.010

Overall Cable Diameter (Nominal)

0.280 in (7.11 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Shield Max. Capacitance Unbalance Nom. Characteristic Impedence Nom. Inductance Nom. Velocity of Prop. Max. Current
Pair(s) 7.2 Ohm/1000ft 45 pF/ft (150 pF/m) 1.2 pF/ft 100 Ohm 0.19 µH/ft (0.62 µH/m) 66% 5.2 Amps per Conductor at 25ºC

Nom Outer Shield DCR@Cond DCR1-cnv

8.5 Ohm/1000ft (28 Ohm/km)

High Frequency (Nominal/Typical)

Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 0.039 0.08 dB/100ft

Voltage

UL Voltage Rating
300 V (CM, PLTC-ER), 150 V (ITC-ER)

Temperature

UL Temperature Operating
105°C -40°C to +105°C

Bend Radius

Stationary Min. Installation Min.
6.5 in (170 mm) 2.80 in (71.1 mm)

Max. Pull Tension

60 lbs (27 kg)

Bulk Cable Weight

44 lbs/1000ft

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance, Burial

Flammability / Reaction to Fire

UL 1685 UL Loading, FT4, IEEE 1202, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

NEC / UL Compliance

Article 725, Article 727, Article 800, CMG, ITC, PLTC, TC

CEC / C(UL) Compliance

CMG

ISO/IEC Compliance

IEC 61158-2

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

Other Standard Compliance(s)

ISA/SP-50 Type A

Notes

Fieldbus: Orange jacket. Profibus PA: Intrinsically Safe Blue jacket. Jacket diameter tolerance: +/- .010

Update and Revision

Revision Number: 0.535 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.

Update and Revision

Revision Number: 0.535 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.

Report An Error

Références des pièces

Item # Color Putup Type Length UPC Footnote
3076F 0061000 Blue, Light Reel 1,000 ft 612825140269 C
3076F 00310000 Orange 612825140214 C N
3076F 003250 Orange Reel 250 ft 612825140221 C
3076F 003500 Orange Reel 500 ft 612825140245 C
3076F 0031000 Orange Reel 1,000 ft 612825140207 C
3076F 0032500 Orange Reel 2,500 ft 612825140238 C
3076F 0035000 Orange Reel 5,000 ft 612825140252 C N
