G Series - RKMWV 5-507

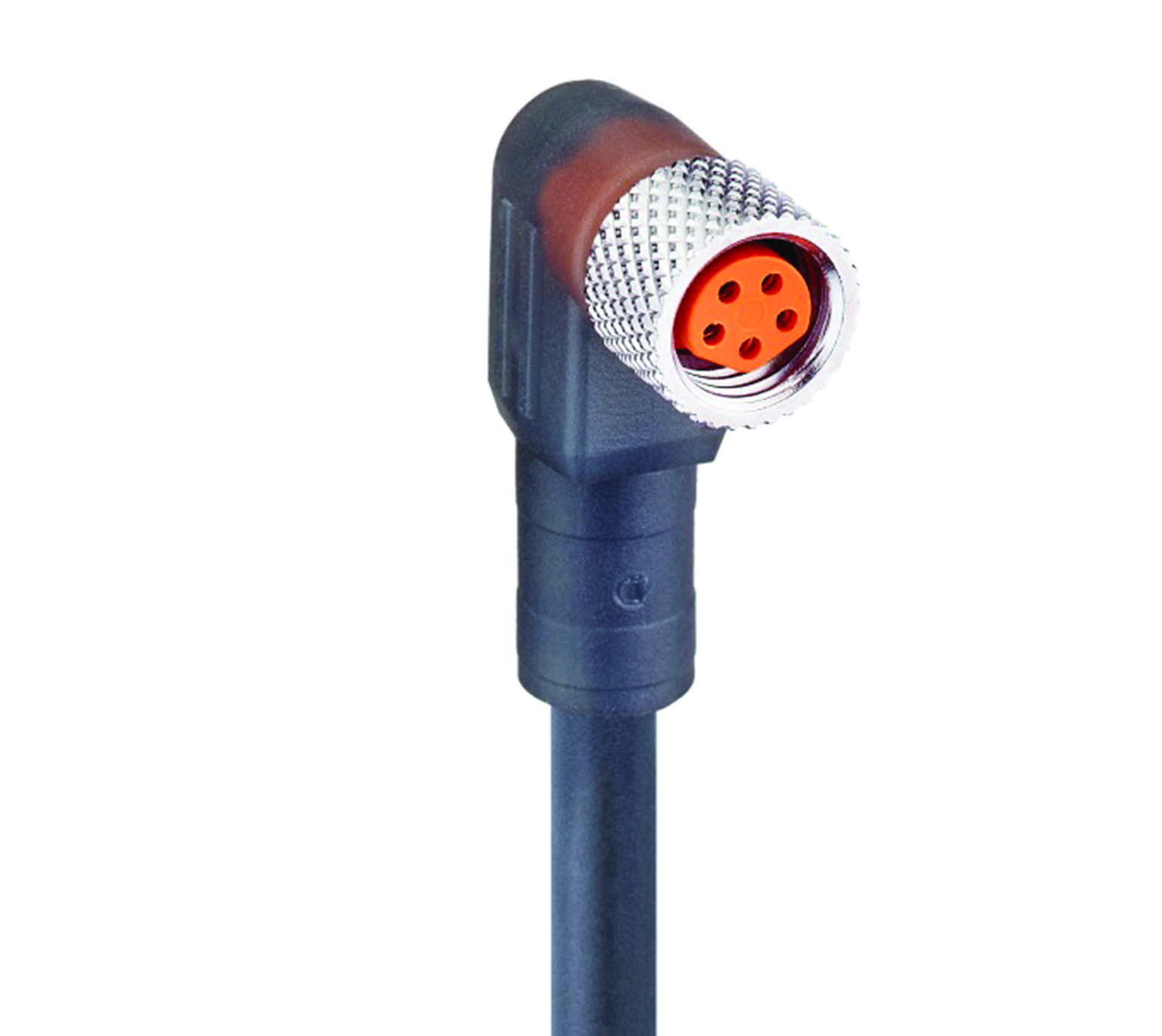

M8 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 5-pin, B-coded, translucent body, 50 V AC / 60 V DC, 3 A; PVC black cable, 5-wires, 0.25 mm²

Disponibilité:

Global
Statut:

Actif

Citer

Spécifications
Références des pièces
Ressources

Spécifications

Expand All

Information

Face View

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5
brown	white	blue	black	grey

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	M8 Standard
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	5
Coding, Side 1	B
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	60 V
Rated Voltage (UL)	30 V AC/DC
Rated Impulse Voltage	0.8 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	3 A
Rated Current (UL)*	3 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 75 °C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-104
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA 66 GF
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
O-Ring Material	FKM, green

Circuitry

Fastening Torque (Attachment)	M 8x1: 30 Ncm, hand-tight

Cable Data

Cable Number	507
Conductor Size	0.25 mm²
Number of Wires	5
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Conductor Material	Cu
Cable Jacket Material	PVC
Cable Jacket Color	black
Cable Diameter D	ø 5.0 ± 0.20 mm
Wire Insulation Material	PVC
Insulated Wire Diameter	ø 1.22 ± 0.10 mm
Ambient Temperature (Fixed Installation)	- 40 - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 5 - + 90 °C (UL: + 80 °C)
UL Cable Type	AWM: 2464
Flammability Class (Cable Jacket)	IEC 60332-1-2

Approvals

UL-File	E315587
UL	UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant	yes

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

Information

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

Report An Error

Références des pièces

Item #	Item Description	Cable Length
934842013	RKMWV 5-507/2 M	2 m
934842014	RKMWV 5-507/5 M	5 m
934842015	RKMWV 5-507/10 M	10 m
934842016	RKMWV 5-507/15 M	15 m
934842017	RKMWV 5-507/20 M	20 m
934842018	RKMWV 5-507/25 M	25 m
