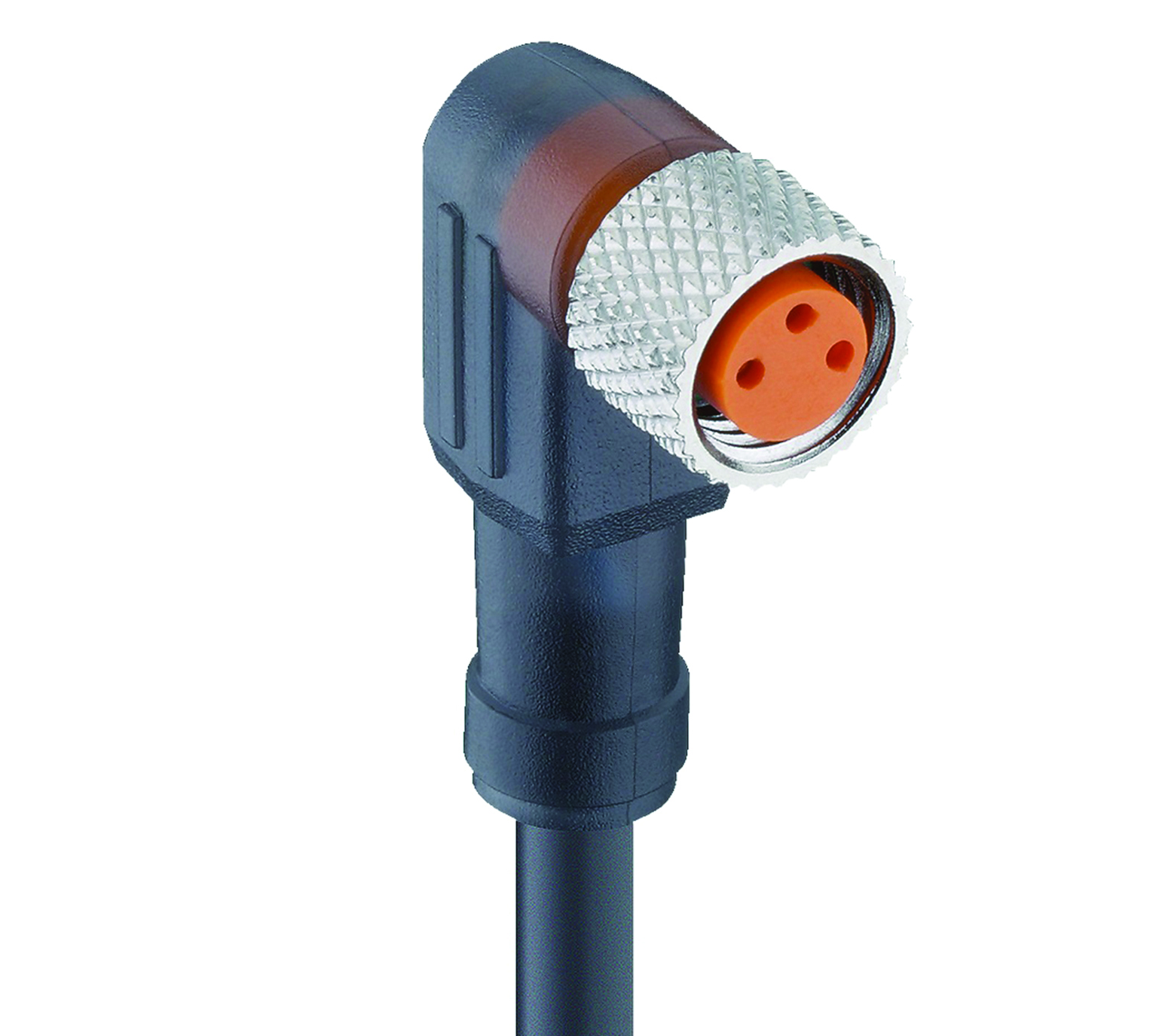

G Series - RKMWV/LED A 3-224

M8 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 3-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 2xLEDs (PNP); PUR black cable, 3-wires, 0.34 mm²

Disponibilité:

Global
Statut:

Actif

Citer

Spécifications
Références des pièces
Ressources

Spécifications

Expand All

Information

Face View

Pin 1	Pin 3	Pin 4
brown	blue	black

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	M8 Standard
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	3
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	30 V
Rated Voltage (UL)	30 V DC
Rated Impulse Voltage	0.5 kV
Operating Voltage	10-30 V DC
Current Rating	4 A
Rated Current (UL)*	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 70 °C
Protection Degree / IP Rating**	IP65, IP67, IP69K
Design Standard	IEC 61076-2-104
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	TPU
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
O-Ring Material	FKM, green

Circuitry

Function Indicator	2xLEDs (PNP)
Fastening Torque (Attachment)	M 8x1: 30 Ncm, hand-tight

Cable Data

Cable Number	224
Conductor Size	0.34 mm²
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black matt similarly RAL 9005
Cable Diameter D	ø 4.30 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.30 ± 0.10 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 80 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Free of lacquer wetting disturbing substances; Coldness flexibility

Approvals

UL-File	E315587
UL	UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
Oil Resistance	Good chemical and oil resistance

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

Information

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

Report An Error

Références des pièces

Item #	Item Description	Cable Length
105228	RKMWV/LED A 3-224/0,6 M	0.6 m
44064	RKMWV/LED A 3-224/1 M	1 m
14007	RKMWV/LED A 3-224/2 M	2 m
44432	RKMWV/LED A 3-224/3 M	3 m
14005	RKMWV/LED A 3-224/5 M	5 m
14006	RKMWV/LED A 3-224/10 M	10 m
44385	RKMWV/LED A 3-224/15 M	15 m
92476	RKMWV/LED A 3-224/20 M	20 m
934636074	RKMWV/LED A 3-224/25 M	25 m
15378	RKMWV/LED A 3-224/30 M	30 m
