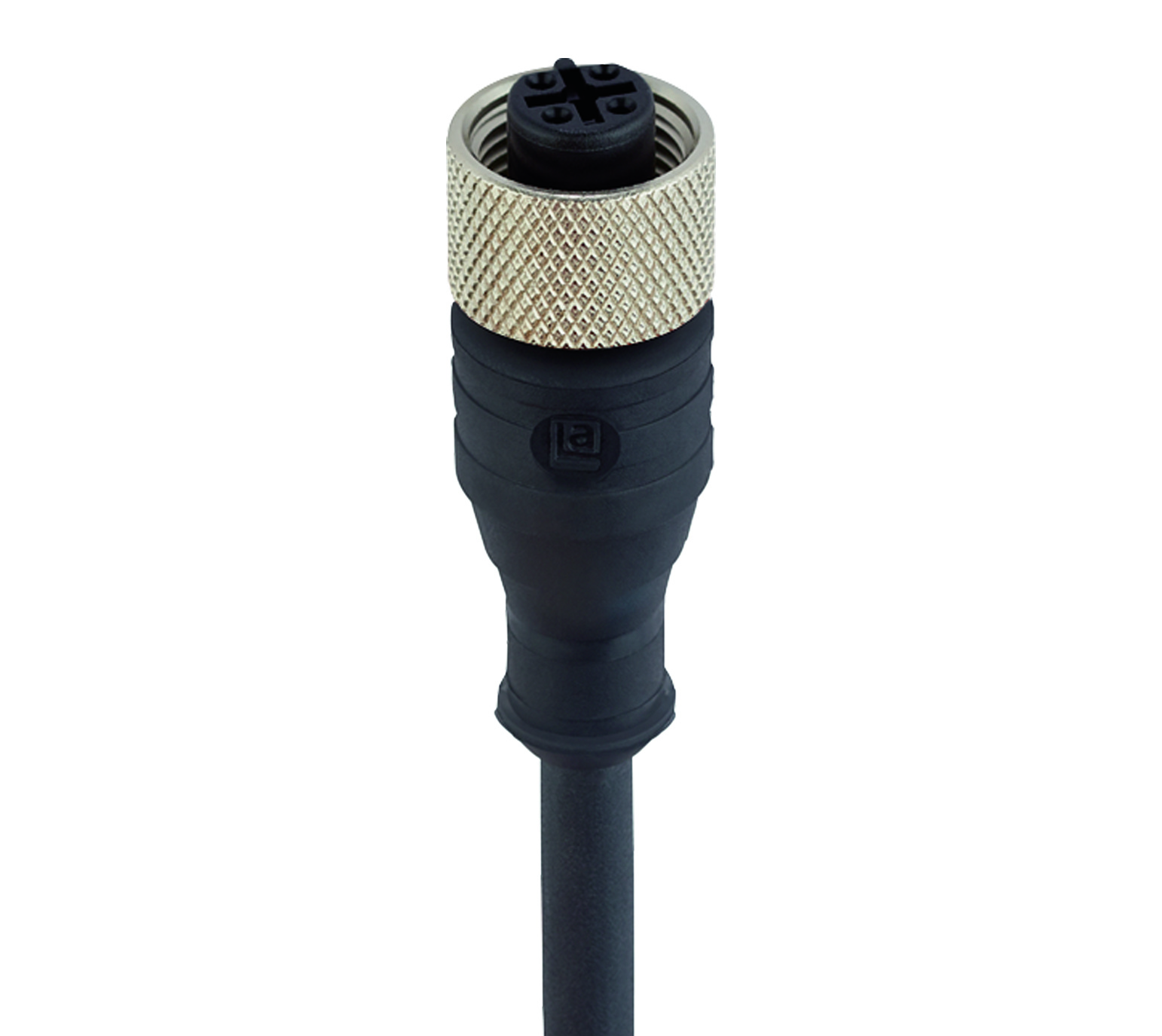

G Series - RKT 4B-225

M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, B-coded, translucent body, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, 0.34 mm²

Disponibilité:

Global
Statut:

Actif

Citer

Spécifications
Références des pièces
Ressources

Spécifications

Expand All

Information

Face View

Pin 1	Pin 2	Pin 3	Pin 4
brown	white	blue	black

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	M12 Standard
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Straight
Number of Pins	4
Coding, Side 1	B
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	60 V
Rated Voltage (UL)	30 V AC/DC
Rated Impulse Voltage	1.5 kV
Operating Voltage	50 V AC / 60 V DC
Current Rating	4 A
Rated Current (UL)*	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 50 °C
Protection Degree / IP Rating**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	TPU
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
O-Ring Material	FKM, green

Circuitry

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number	225
Conductor Size	0.34 mm²
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black matt similarly RAL 9005
Cable Diameter D	ø 4.70 ± 0.15 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.30 ± 0.10 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 25 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances
Core Colors	brown, white, blue, black

Approvals

UL-File	E315587
UL	UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1

Notes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
