G Series - RSM 8-354

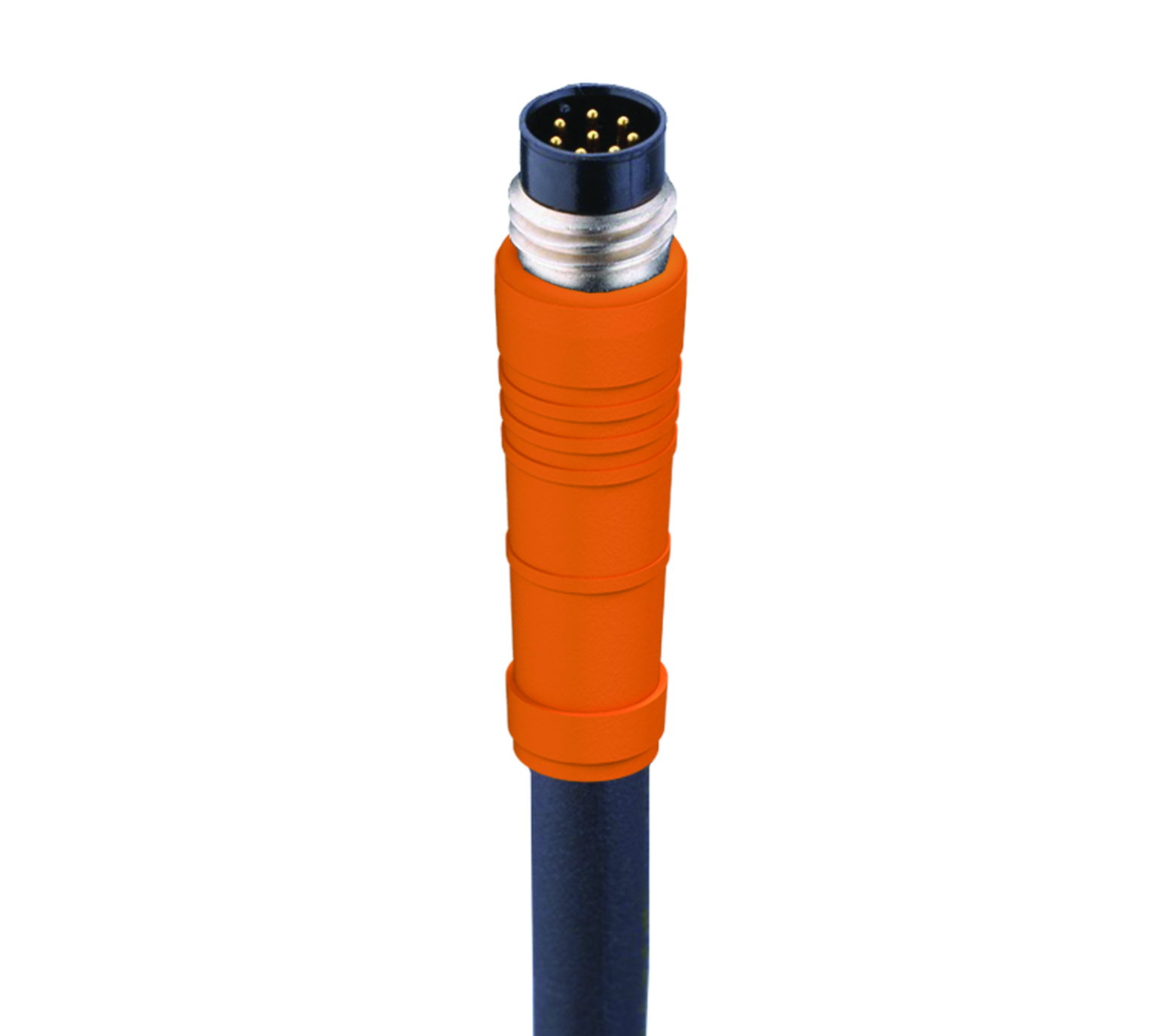

M8 Snap-In Sensor/Actuator Single-Ended Cordset: Male, straight, 8-pin, A-coded, orange body, 30 V AC/DC, 1 A; TPU black cable, 8-wires, 0.14 mm²

Spécifications

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8
white	brown	green	yellow	grey	pink	blue	red

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	M8 Snap-In
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Number of Pins	8
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Snap- and Screw-Locking
Voltage Rating	30 V
Rated Voltage (UL)	30 V AC/DC
Rated Impulse Voltage	0.8 kV
Operating Voltage	30 V AC/DC
Current Rating	1 A
Rated Current (UL)*	1 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 50 °C
Protection Degree / IP Rating**	IP65 (in combination with female M8 Snap-In connector); IP65, IP67 (in combination with female M8 Standard connector)
Design Standard	IEC 61076-2-104
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PA 66 GF
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	TPU
Molded Body Color	Orange
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated

Cable Number	354
Conductor Size	0.14 mm²
Number of Wires	8
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Conductor Material	Cu
Cable Jacket Material	TPU
Cable Jacket Color	black matt similarly RAL 9005
Cable Diameter D	ø 5.0 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 0.93 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 80 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst)	max. + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	IEC 332-2, UL FT-2
Cable Characteristics	Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Good microbes and hydrolysis resistance; Coldness flexibility

UL-File	E315587
UL	UL 2238; cURus

RoHS Compliant	yes

Oil Resistance	Good chemical and oil resistance

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
