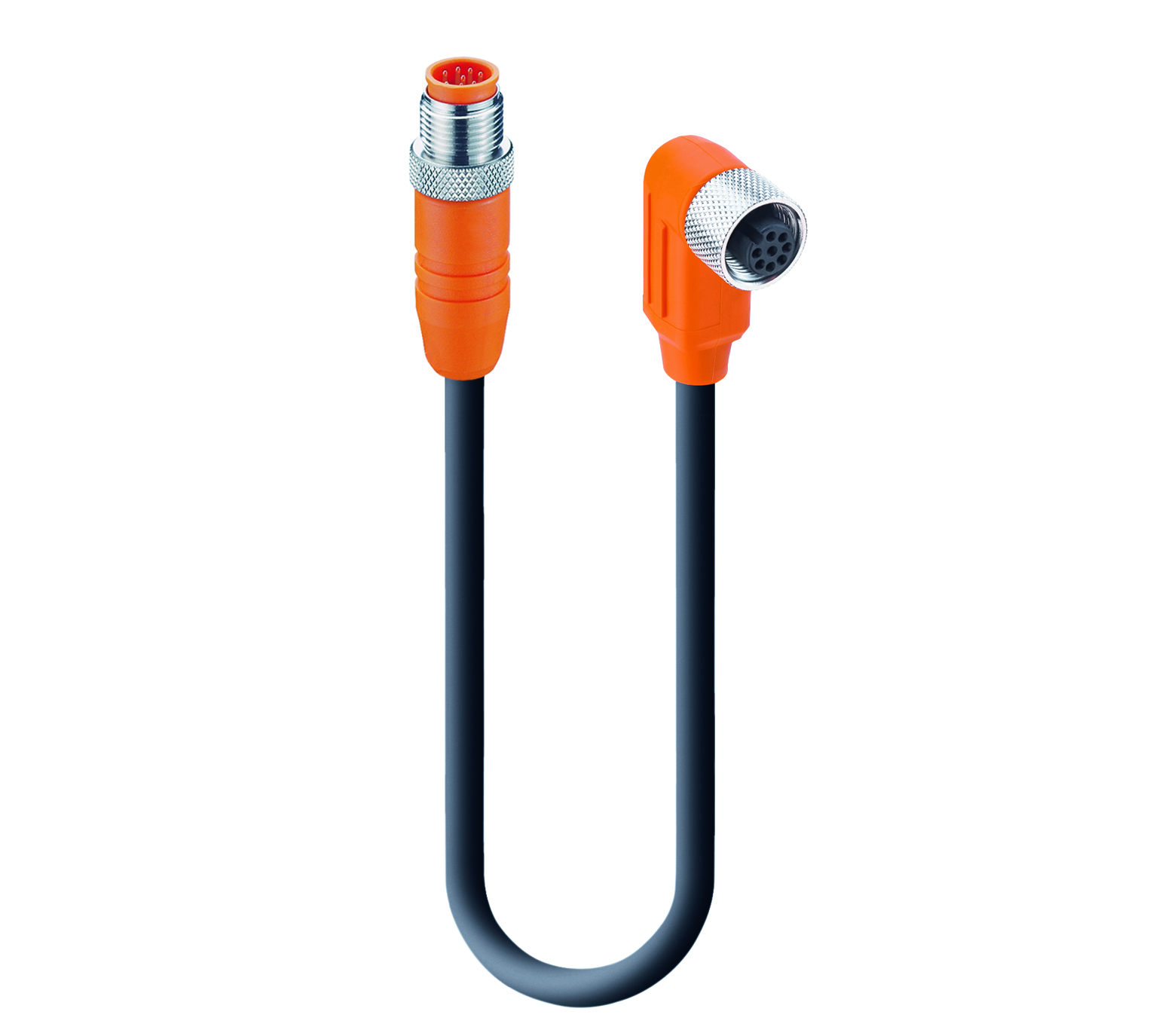

G Series - RSTS 8-RKWTS 8-299

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 8-pin M12 Standard connector to female angled A-coded orange 8-pin M12 Standard connector, shielded, 30 V AC/DC, 2 A; PUR black cable, 8-wires, 0.25 mm²

Disponibilité:

Global
Statut:

Actif

Citer

Spécifications
Références des pièces
Ressources

Spécifications

Expand All

Information

Face View Side 1

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8
white	brown	green	yellow	grey	pink	blue	red

Face View Side 2

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8
white	brown	green	yellow	grey	pink	blue	red

Product Family	Sensor / Actuator Connectors
Connector Type	Cordset, double ended
Shielding Type	Shielded
Voltage Rating	30 V
Rated Voltage (UL)	30 V AC/DC
Rated Impulse Voltage	0.8 kV
Operating Voltage	30 V AC/DC
Current Rating	2 A
Rated Current (UL)*	2 A

Technical Data Side 1

Side 1 Product Sub Family	M12 Standard
Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	8
Coding, Side 1	A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 50 °C
Protection Degree / IP Rating**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	TPU-GF
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Orange
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Shielding Material	CuZn, tin-plated
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight
Note	Do not connect or disconnect under load.

Cable Data

Cable Number	299
Conductor Size	0.25 mm²
Number of Wires	8
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 2 M
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black matt similarly RAL 9005
Cable Diameter D	ø 6.60 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.20 ± 0.05 mm
Overall Shield (Cable)	Mesh wire
Ambient Temperature (Fixed Installation)	- 50 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 25 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility

Technical Data Side 2

Side 2 Product Sub Family	M12 Standard
Side 2 Type of Contact/Gender	Female
Connector Design, Side 2	Angled
Attachment Type, Side 2	Coupling Nut
Number of Pins, Side 2	8
Coding, Side 2	A
Contact Resistance, Side 2	≤ 10 mOhm
Insulation Resistance, Side 2	˃ 10^9 Ohm
Mating Cycles, Side 2	≤ 100
Ambient Temperature (Operation), Side 2*	- 40 °C - + 90 °C
Operating Temperature (UL), Side 2	max. + 50 °C
Protection Degree / IP Rating, Side 2**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Design Standard, Side 2	IEC 61076-2-101
Pollution Degree, Side 2	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	CuZn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	PBT
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94 HB
Molded Body Material, Side 2	TPU
Molded Body Color, Side 2	Orange
Flammability Class (Molded Body), Side 2	UL 94 V-2
Attachment Material, Side 2	CuZn
Attachment Plating, Side 2	Nickel-plated
Shielding Material, Side 2	Housing: GD-Zn, nickel-plated, Sleeve: CuZn, tin-plated
O-Ring Material, Side 2	FKM, green
Fastening Torque (Attachment), Side 2	M 12x1: (50-60) Ncm, hand-tight

Approvals

UL-File	E315587
UL	UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
Oil Resistance	Good chemical and oil resistance

Notes

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating

Information

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating

Report An Error

Références des pièces

Item #	Item Description	Cable Length
934705013	RSTS 8-RKWTS 8-299/1 M	1 m
934705014	RSTS 8-RKWTS 8-299/10 M	10 m
934705015	RSTS 8-RKWTS 8-299/2 M	2 m
934705016	RSTS 8-RKWTS 8-299/3 M	3 m
934705017	RSTS 8-RKWTS 8-299/5 M	5 m
15574	RSTS 8-RKWTS 8-299/4 M	4 m
12555	RSTS 8-RKWTS 8-299/7 M	7 m
10138	RSTS 8-RKWTS 8-299/0,3 M	0.3 m
