Numéro de produit: 8760MN

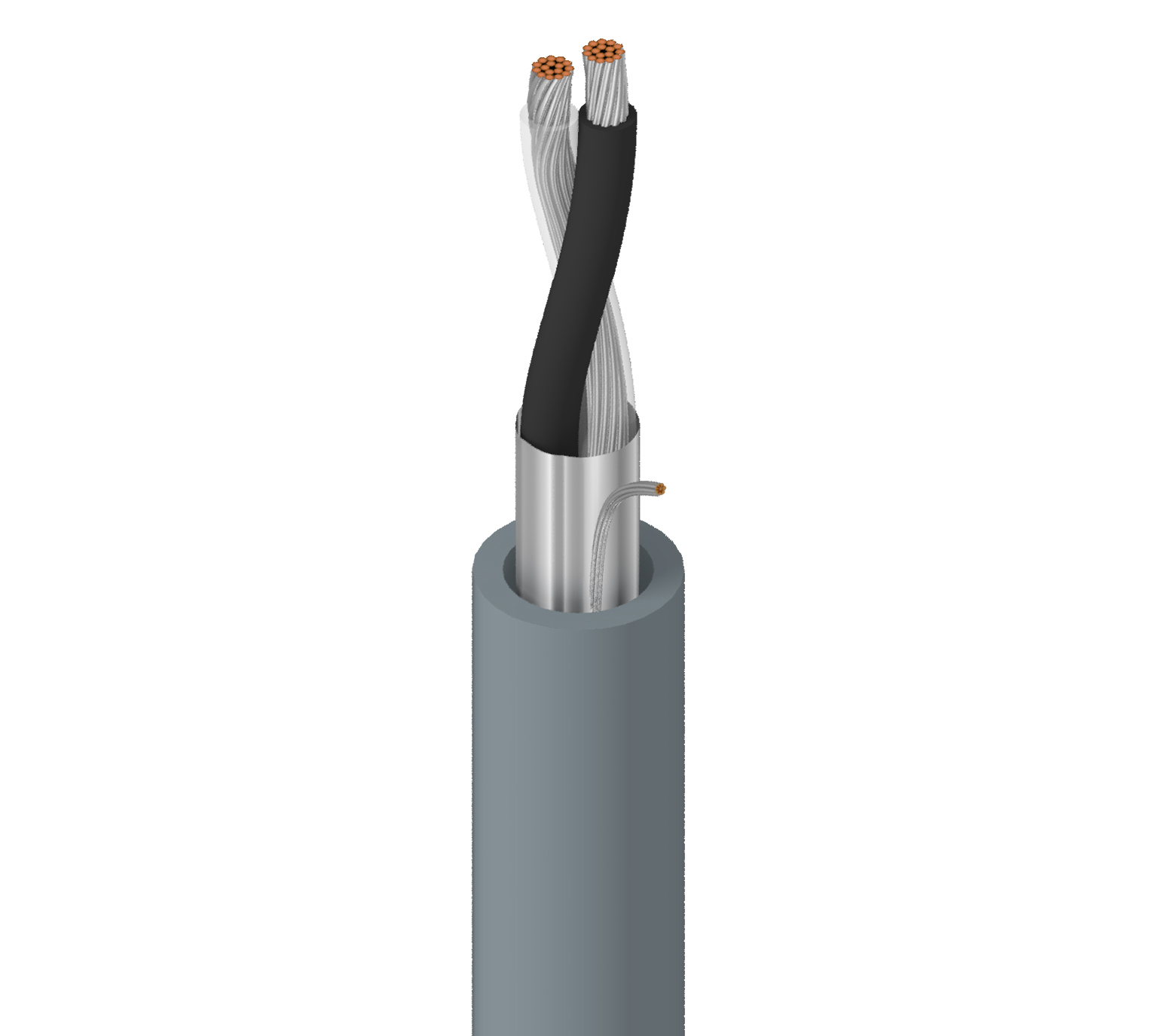

SpaceMaker™, 2 C #18 Str TC, PE Ins, OS, PVC Jkt, AWM 2937

SpaceMaker™, 2 Conductor 18AWG (41x34) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

  • Disponibilité:
    Global
  • Statut:
    Actif
8760MN
  • 8760MN
1 de 1

Spécifications

Expand All

Suitable Applications

Connect machines and devices in space constrained settings,low voltage analog signals (4-20ma, 0-10v, ...),low voltage digital control (24v, …),ine level audio,computer communication,panel wiring

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 1 18 AWG 41x34 TC - Tinned Copper

Insulation

Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP - Polypropylene 0.010 in (0.25 mm) 0.067 in (1.7 mm) Black & White

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (19x32) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.016 in (0.41 mm) 0.169 in (4.29 mm)

Overall Cable Diameter (Nominal)

0.169 in (4.29 mm)

Electricals

Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Inductance Max. Current
Pair(s) 7.06 Ohm/1000ft 76.9 pF/ft (252 pF/m) 40.6 pF/ft (133 pF/m) 0.170 µH/ft (0.558 µH/m) 14 Amps per Conductor at 30ºC

Nom Outer Shield DCR@Cond DCR1-cnv

8.18 Ohm/1000ft (26.8 Ohm/km)

Voltage

UL Voltage Rating
300 V (UL AWM 2937)

Temperature

UL Temperature Operating
80°C -30°C to +80°C

Bend Radius

Stationary Min. Installation Min.
2.0 in (51 mm) 2.0 in (51 mm)

Max. Pull Tension

56 lbs (25 kg)

Bulk Cable Weight

20 lbs/1000ft

Environmental Suitability

Indoor

Flammability / Reaction to Fire

FT2

AWM Compliance

AWM 2937

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision

Revision Number: 0.334 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.334 Revision Date: 09-07-2025
