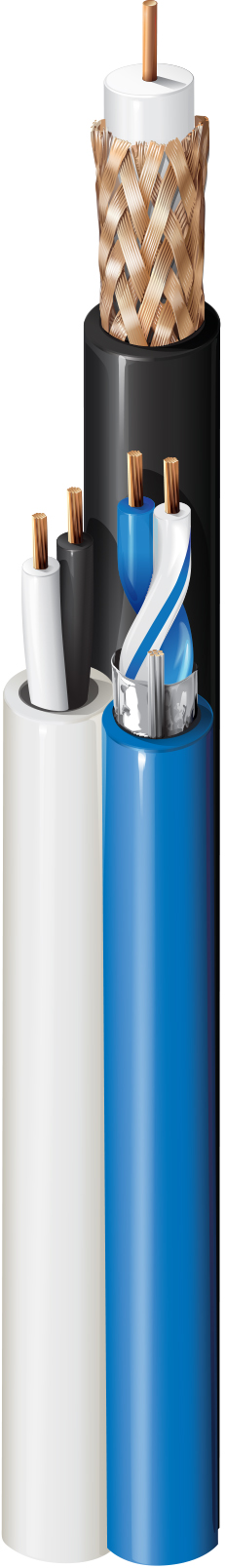

CPR Copper - 500PTZ

PTZ (CCTV + Control + Power) Cable, Rated-CM, 1-RG59 20 AWG solid bare copper with foam polyolefin, 95% bare copper braid, 1-23 AWG solid bare copper pair with polyolefin insulation, 2-18 AWG stranded bare copper conductors with polyolefin insulation, Siamese with PVC jacket

Disponibilité:

Global
Statut:

Actif

Citer

Spécifications
Références des pièces
Ressources

Spécifications

Expand All

Product Overview

Suitable Applications	Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

RG Type	59

Conductor

Element	Size	Stranding	Nom. Diameter	Material
Coax(es)	20	Solid	0.032 in	BC - Bare Copper
Pair1	23	Solid	0.023 in	BC - Bare Copper
Pair2	18	7x26	0.047 in	BC - Bare Copper

Insulation

Element	Material	Nom. Insulation Diameter	Color Code
Coax(es)	PE - Polyethylene (Foam)	0.145 in (3.68 mm)	White, Blue & White/Blue, Black & Red
Pair1	PP - Polypropylene	0.041 in (1.0 mm)
Pair2	PP - Polypropylene

Insulation Table Notes	Gas Injected

Inner Shield

Element	Shield Type	Material	Coverage
Coax(es)	Braid	Bare Copper (BC)	95%
Pair1	No Shield	No Shield
Pair2	No Shield

Inner Jacket

Material	Nom. Diameter
PVC - Polyvinyl Chloride	0.227 in (5.77 mm)

Outer Jacket

Material	Nom. Diameter
Banana Peel (No Overall Jacket)	0.411 in

Electrical Characteristics

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.3 dB/100ft
5 MHz	0.65 dB/100ft
10 MHz	0.9 dB/100ft
50 MHz	1.9 dB/100ft
100 MHz	2.6 dB/100ft
200 MHz	3.6 dB/100ft
400 MHz	5 dB/100ft
700 MHz	7 dB/100ft
900 MHz	8 dB/100ft
1000 MHz	8.5 dB/100ft

Electricals

Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Shield	Nom. Characteristic Impedance	Nom. Velocity of Prop.	Max. Current
10 Ohm/1000ft (33 Ohm/km)	3.5 Ohm/1000ft (11 Ohm/km)	16.3 pF/ft (53.5 pF/m)	75 Ohm	83%
20 Ohm/1000ft (66 Ohm/km)					2.4 Amps per Conductor at 25ºC
6.5 Ohm/1000ft (21 Ohm/km)					5 Amps per Conductor at 25ºC

Voltage

UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature

UL Temperature	Operating	Installation
75°C	-10°C To +75°C	0°C To +75°C

Max. Pull Tension	115 lbs (52.2 kg)
Bulk Cable Weight	60 lbs/1000ft (89 kg/km)

Standards and Compliance

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire	UL1666 Vertical Shaft
CPR Compliance	CPR Euroclass: Fca
NEC / UL Compliance	Article 800, CMR
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	Video coax: RG 59/U
Plenum Number	600PTZ

Product Notes

Notes	RG59 CCTV + 1PR23 UTP + 2C 18 AWG CMR. Individually jacketed and color coded components, cabled around and each fused to a central binding spline. Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation.

Notes

RG59 CCTV + 1PR23 UTP + 2C 18 AWG CMR. Individually jacketed and color coded components, cabled around and each fused to a central binding spline. Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation.
