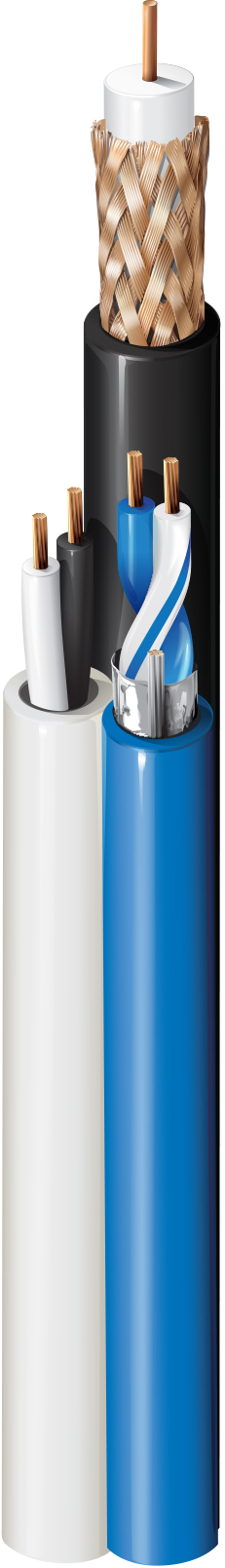

CPR Copper - 502PTZ

PTZ (CCTV + Control + Power) Cable, Riser-CMR, 1-RG59 20 AWG solid bare copper with foam polyolefin, 95% bare copper braid, 1-18 AWG stranded bare copper pair with polyolefin insulation and Beldfoil® shield, 2-18 AWG stranded bare copper conductors with polyolefin insulation, Siamese with PVC jacket

Disponibilité:

Global
Statut:

Actif

Citer

Spécifications
Références des pièces
Ressources

Spécifications

Expand All

Product Overview

Suitable Applications	Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

RG Type	59

Conductor

Element	Size	Stranding	Nom. Diameter	Material
Coax(es)	20	Solid	0.032 in	BC - Bare Copper
Pair1	18	19x30	0.044 in	BC - Bare Copper
Pair2	18	7x26	0.047 in	BC - Bare Copper

Insulation

Element	Material	Nom. Insulation Diameter	Color Code
Coax(es)	PE - Polyethylene (Foam)	0.145 in (3.68 mm)	White, Blue & White/Blue, Black & Red
Pair1	PP - Polypropylene	0.08 in (2.0 mm)
Pair2	PP - Polypropylene

Insulation Table Notes	Gas Injected

Inner Shield

Element	Shield Type	Material	Material Trade Name	Coverage
Coax(es)	Braid	Bare Copper (BC)		95%
Pair1	Tape	Bi-Laminate (Alum+Poly)	Beldfoil®	100%
Pair2	No Shield

Inner Jacket

Material	Nom. Diameter
PVC - Polyvinyl Chloride	0.227 in (5.77 mm)

Outer Jacket

Material	Nom. Diameter
Banana Peel (No Overall Jacket)	0.451 in
	0.219 in
	0.158 in

Electrical Characteristics

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.3 dB/100ft
5 MHz	0.65 dB/100ft
10 MHz	0.9 dB/100ft
50 MHz	1.9 dB/100ft
100 MHz	2.6 dB/100ft
200 MHz	3.6 dB/100ft
400 MHz	5 dB/100ft
700 MHz	7 dB/100ft
900 MHz	8 dB/100ft
1000 MHz	8.5 dB/100ft

Electricals

Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Shield	Nom. Characteristic Impedance	Nom. Velocity of Prop.	Max. Current
10 Ohm/1000ft (33 Ohm/km)	3.5 Ohm/1000ft (11 Ohm/km)	16.3 pF/ft (53.5 pF/m)	75 Ohm	83%
6.5 Ohm/1000ft (21 Ohm/km)		44 pF/ft (140 pF/m)			5 Amps per Conductor at 25ºC
6.5 Ohm/1000ft (21 Ohm/km)

Voltage

UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature

UL Temperature	Operating	Installation
75°C	-10°C To +75°C	0°C To +75°C

Max. Pull Tension	140 lbs (64 kg)
Bulk Cable Weight	74 lbs/1000ft (110 kg/km)

Standards and Compliance

Environmental Suitability	Indoor - Riser, Indoor
Flammability / Reaction to Fire	UL1666 Vertical Shaft
CPR Compliance	CPR Euroclass: Fca
NEC / UL Compliance	Article 800, CMR
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	Video coax: RG 59/U
Plenum Number	602PTZ

Product Notes

Notes	RG59 CCTV + 1 STP18 AWG Control Grade + 2C 18 AWG CMR. Individually jacketed and color coded components, cabled around and each fused to a central binding spline. Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation.
