Numéro de produit: NYGU12BA008BKAA

Outdoor OFC CLT (jelly filled): ARAMID YARNS + CST + Single PE Jacket, 8F, SM, G.652.D

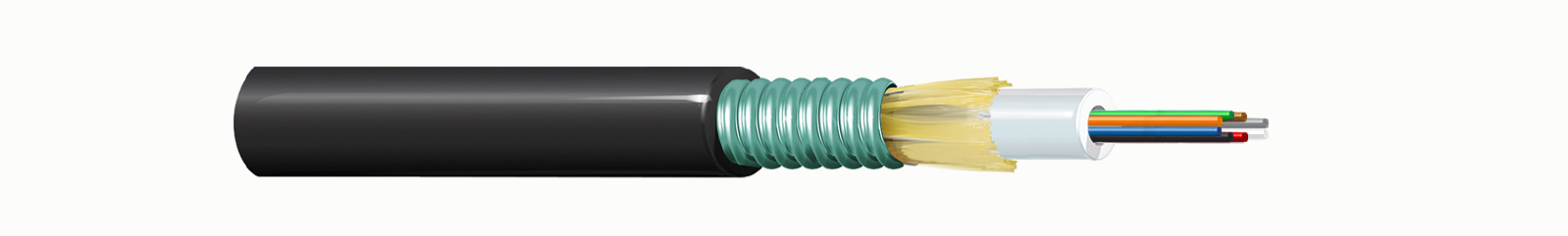

Outdoor optical fiber Central Loose Tube (jelly filled) cable with aramid yarn as flexible non-metallic strength member, Corrugated Steel Tape armor and Single polyethylene jacket (black), 8F, SM, G.652.D

  • Disponibilité:
    Asia Pacific
  • Statut:
    Actif
NYGU12BA008BKAA
  • NYGU12BA008BKAA
1 de 1

Spécifications

Expand All

Product Category

Fiber Central Loose Tube Cable

Suitable Applications

For outdoor use in structured (data) wiring systems such as industrial backbone, campus backbone cabling. For outdoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes.

Fiber Type

OS2, G.652.D

Fiber Core Diameter

125 µm

Fiber Diameter

250 µm

Fiber Count

8

Fiber Color Coding

TIA-598-D

Number of Active Subunits

1

Fibers Per Subunit

8

Subunit Waterblocking

Gel Filled

Subunit Diameter

3.0 mm

Subunit Color

Natural

Armor Type and Material

CST - Corrugated Steel Tape

Strength Member

Aramid Yarns

Jacket Material

PE - Polyethylene

Nom. Diameter

7.3 mm (0.29 in)

Outer Jacket Color

Black

Optical Characteristics

Wavelength 1310 nm 1550 nm
Max. Attenuation 0.36 dB/km 0.22 dB/km
Mode Field Diameter 9.2 µm 10.4 µm

Minimum Bend Radius During Installation

20 x Cable OD

Minimum Bend Radius During Operation

10 x Cable OD

Max. Tensile Strength During Installation

1000 N (220 lbf)

Max. Tensile Strength During Operation

400 N (90 lbf)

Crush Resistance

1000 N/100 mm for short term

Mechanical Tests

Description Tested Standard
Cable Min. Bend Radius Installation (Short Term) IEC 60794-1-21-E11
Cable Min. Bend Radius Operation (Long Term) IEC 60794-1-21-E11
Cable Max. Tensile Strength Installation (Short Term) IEC 60794-1-21-E1
Cable Max. Tensile Strength Operation (Long Term) IEC 60794-1-21-E1
Cable Max. Crush Resistance Installation (Short Term) IEC 60794-1-21-E3
Cable Max. Crush Resistance Operation (Long Term) IEC 60794-1-21-E3

Bulk Cable Weight

54 kg/km (36 lbs/1000ft)

Operating Temperature Range

-40 °C to +70 °C

Storage Temperature Range

-40 °C to +70 °C

Environmental Suitability

Outdoor

ISO/IEC Compliance

IEC 60793-1-1IEC 60794-1-1

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2)

Update and Revision

Revision Number: 0.43 Revision Date: 12-07-2023

Update and Revision

Revision Number: 0.43 Revision Date: 12-07-2023
